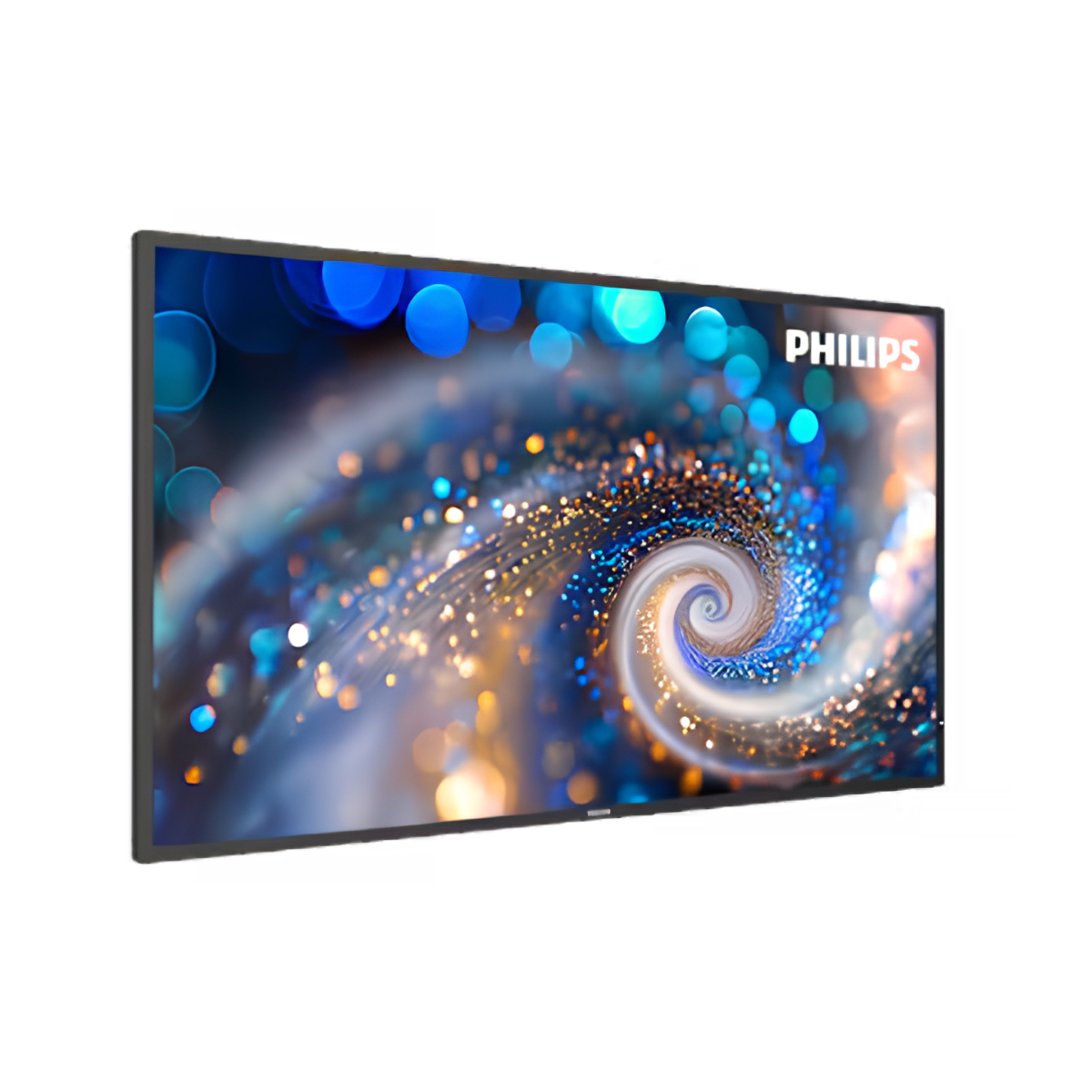

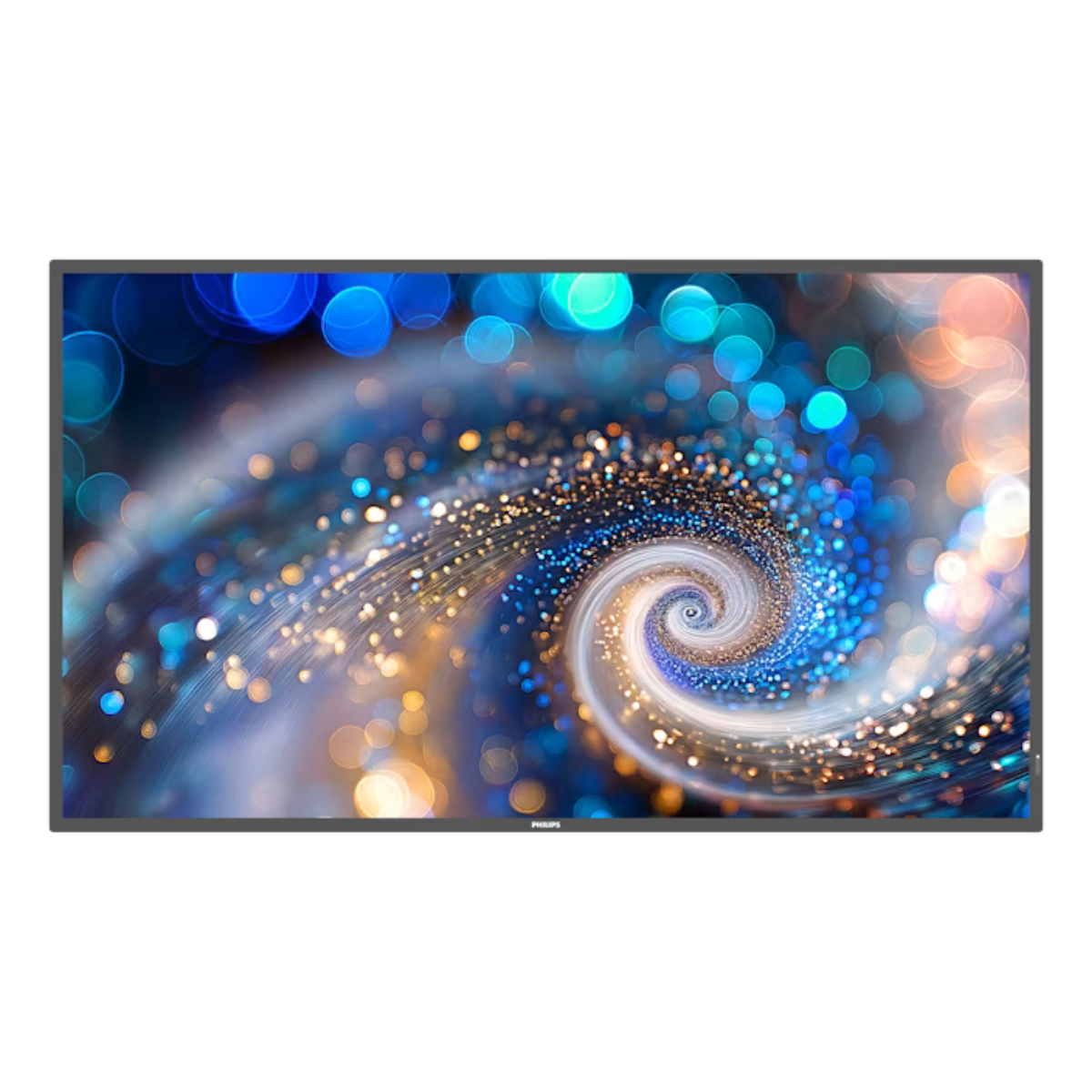

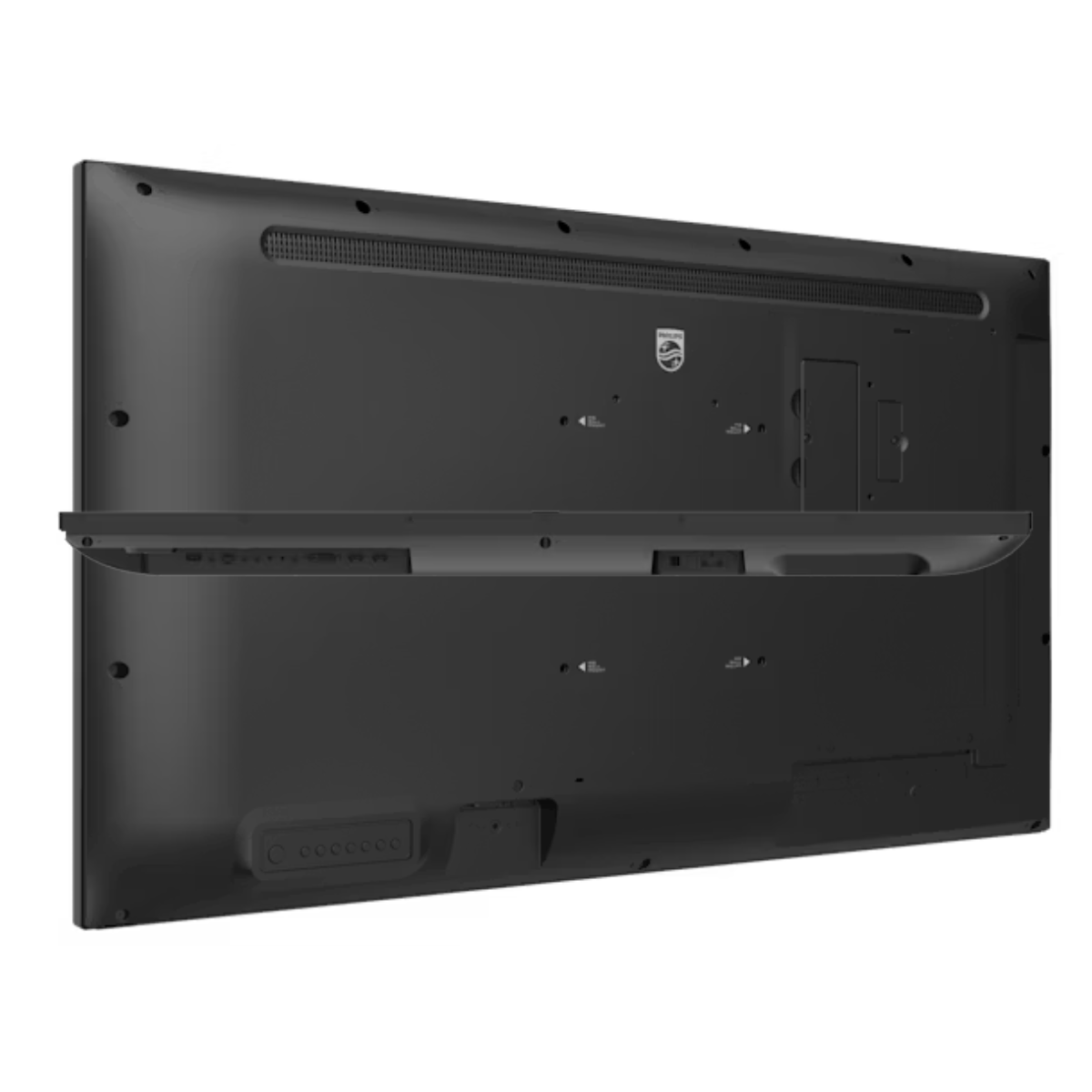

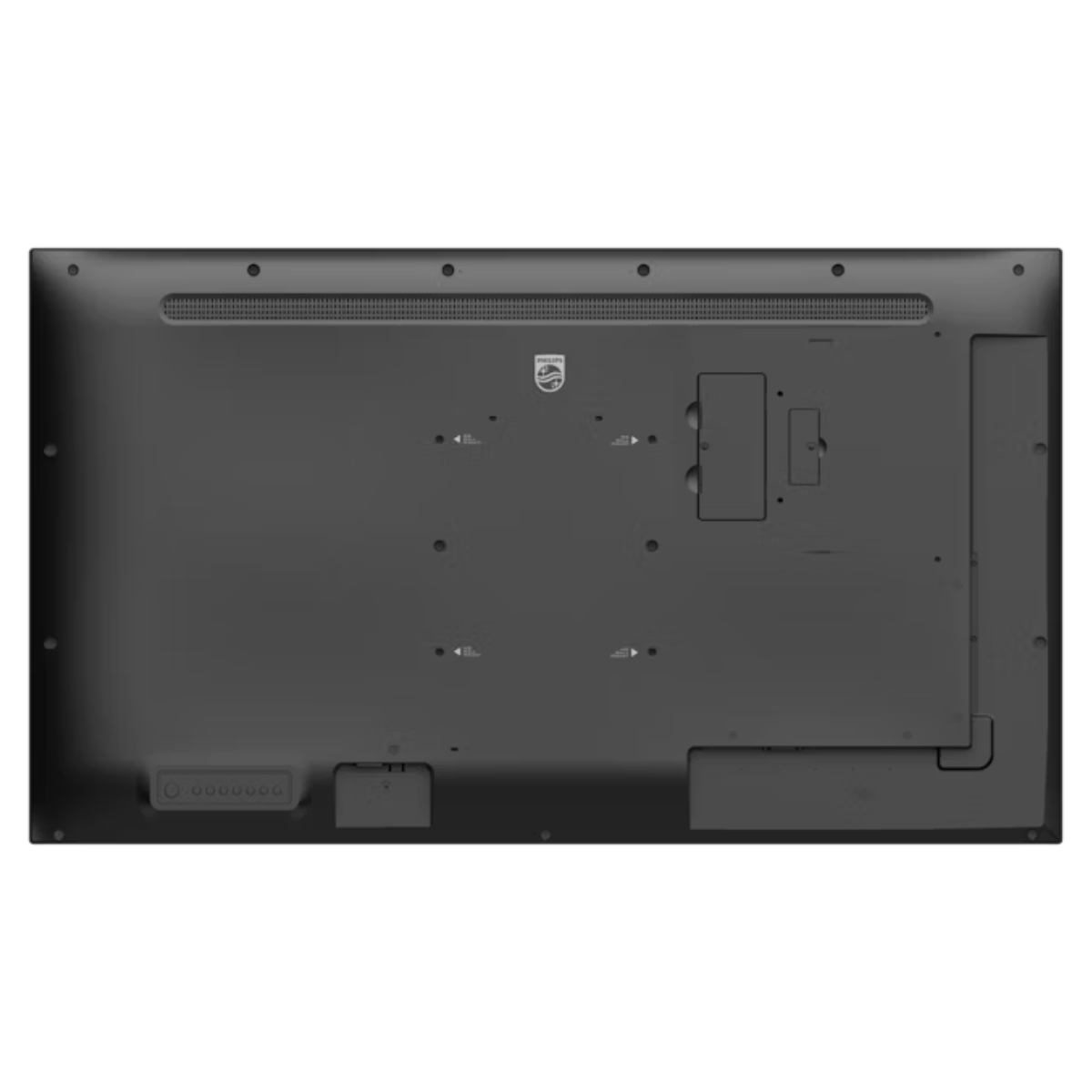

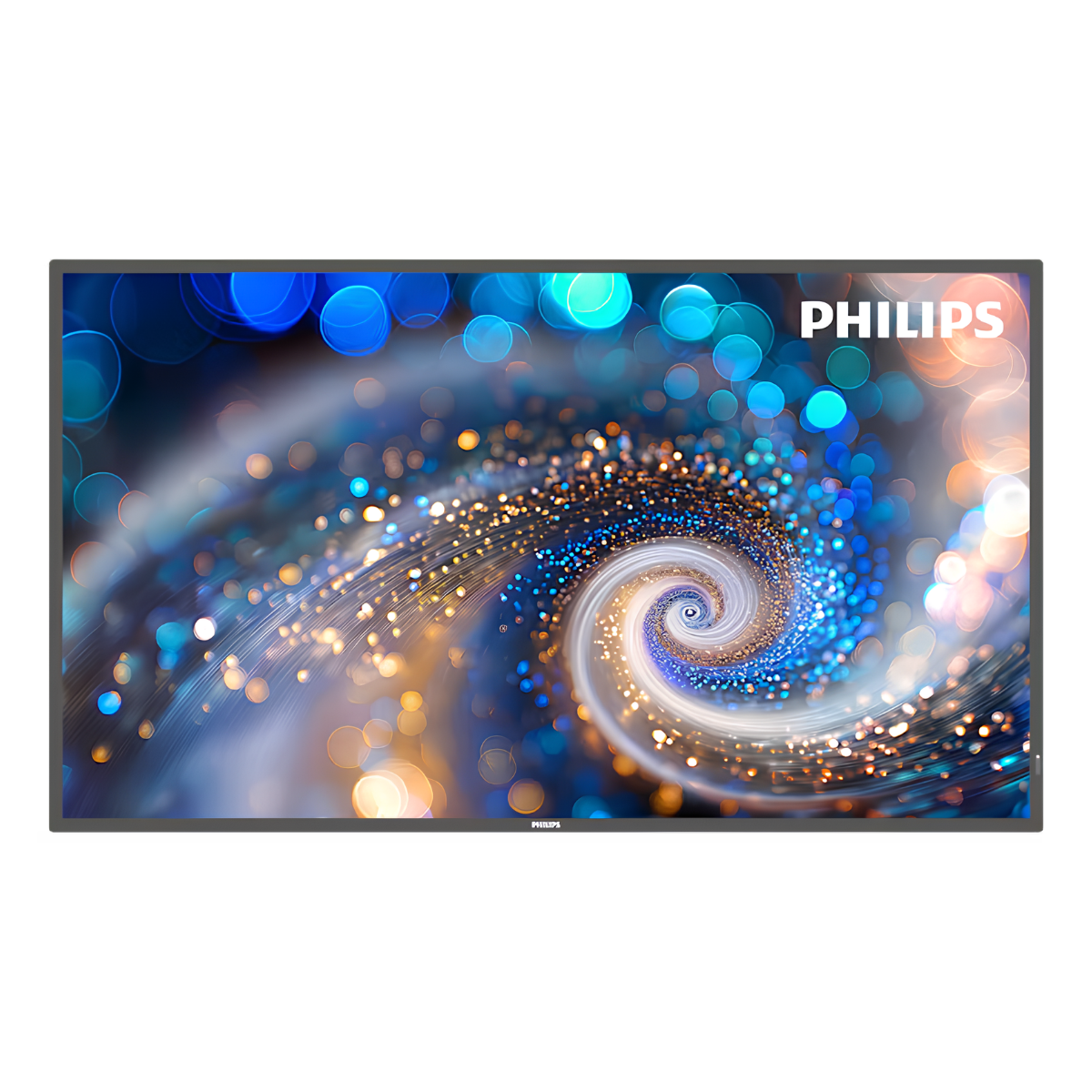

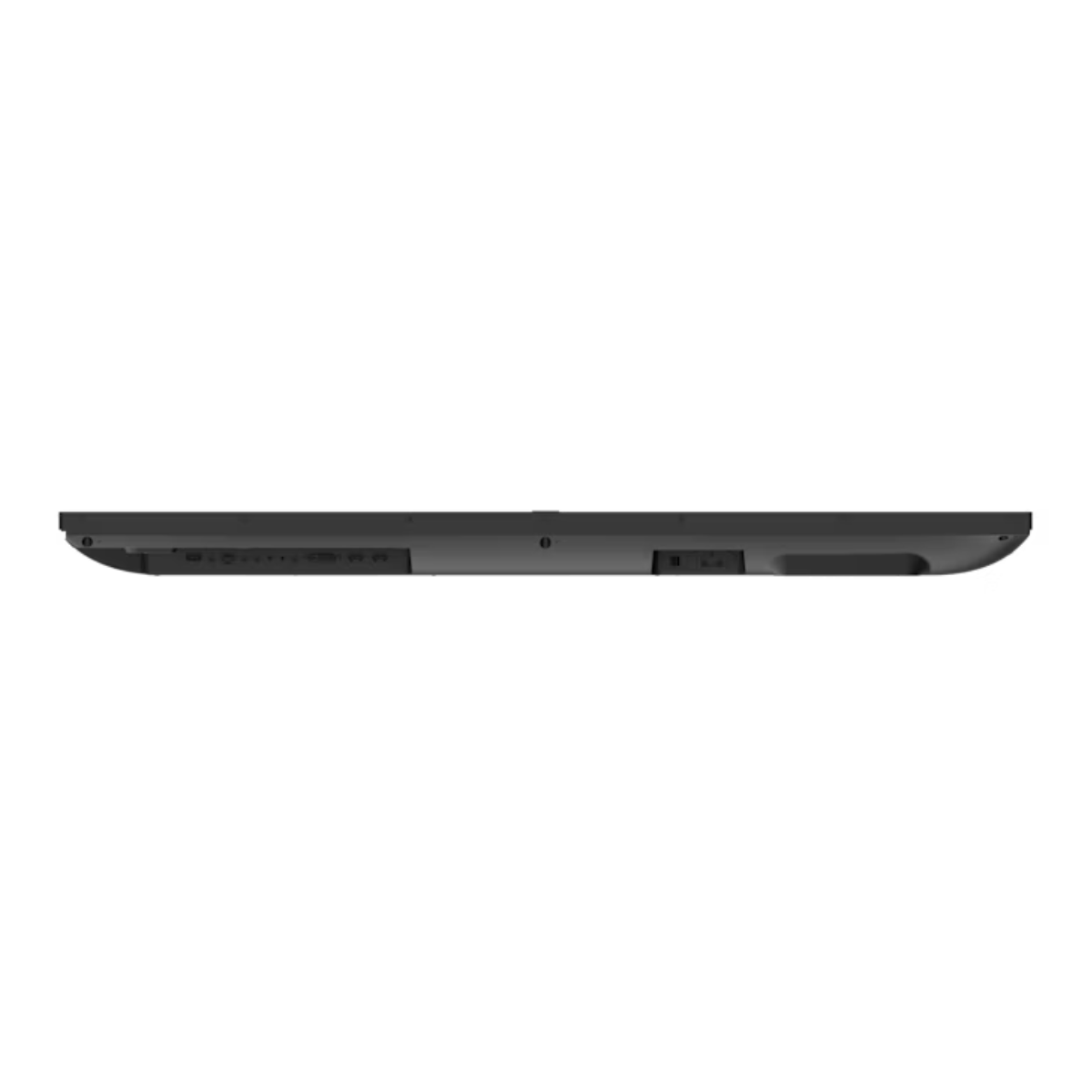

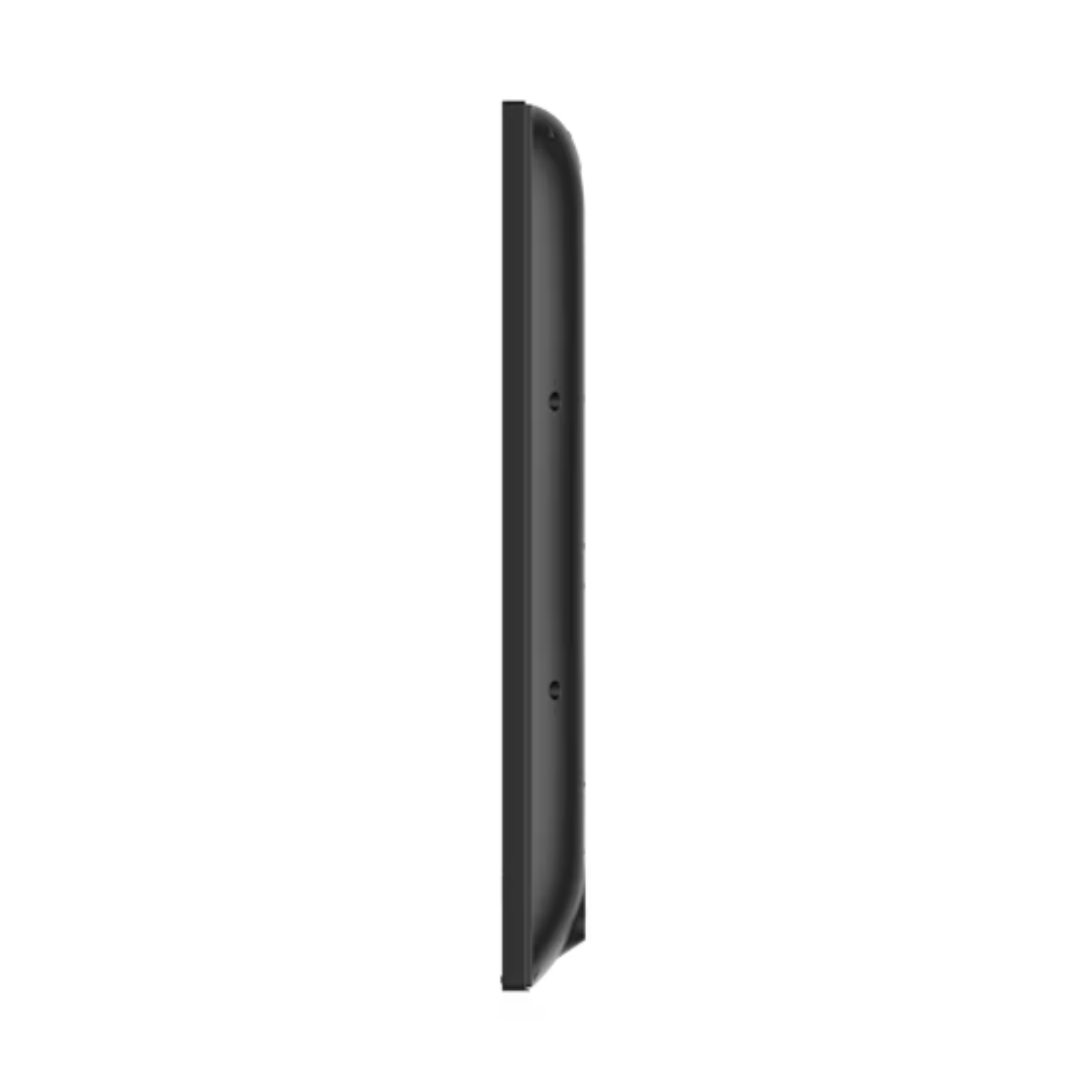

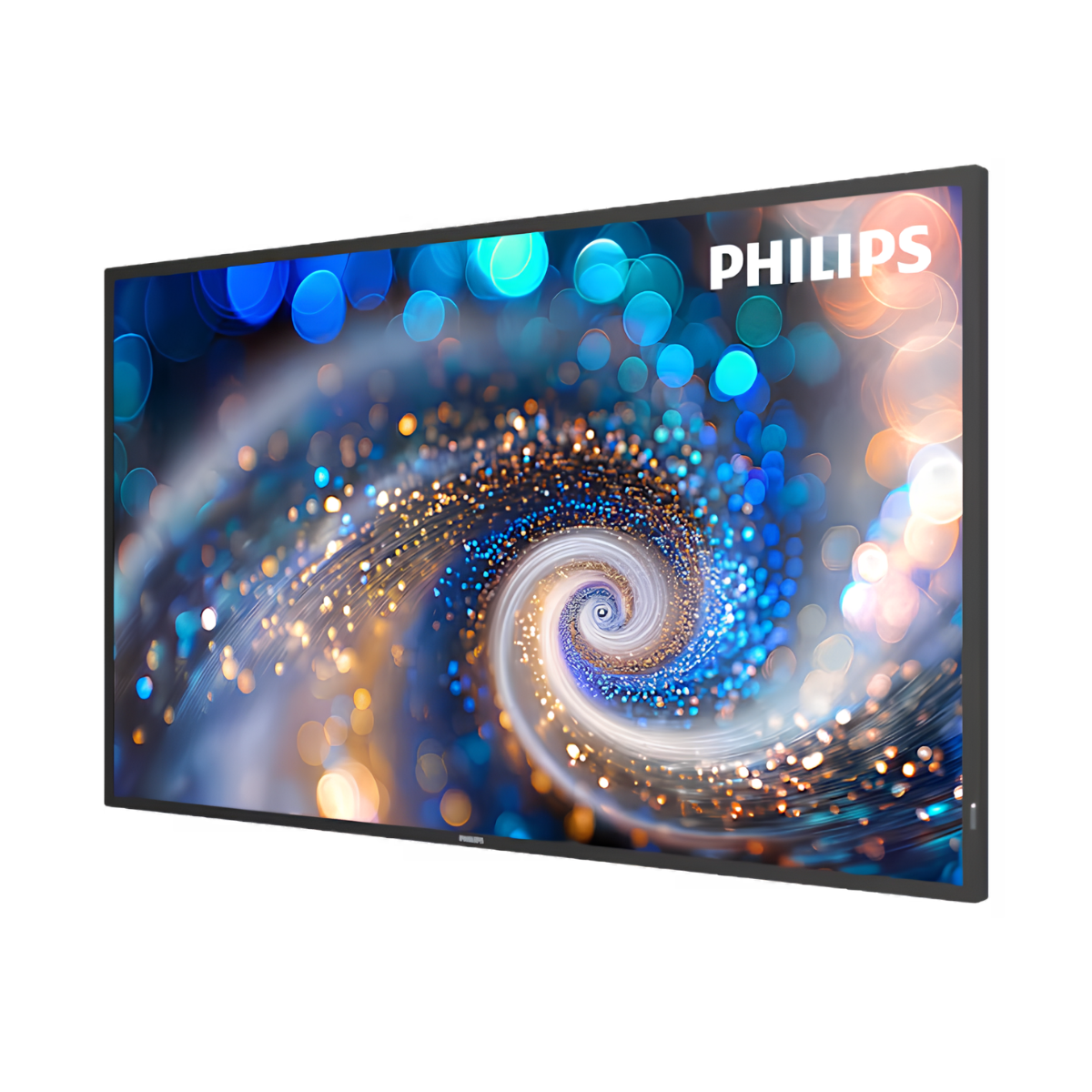

Philips A-Line 43BDL2050A/00 Digital Signage Display
Product code:The Philips Signage 2000 Series brings signage right back to basics – your elemental yet stylish, 16/7 display for simple integrations that don't need bells and whistles. Powered by Android 14, UHD and with 400 nits brightness.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (inch) | 42.5 inch |
|---|---|
| Contrast ratio (typical) | 1200:1 |
| Haze | 1% |
| Viewing angle (vertical) | 178 degree |
| Pixel pitch | 0.2451 x 0.2451 mm |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Panel technology | ADS |
| Operating system | Android 14 |
| Response time (typical) | 8 ms |
| Diagonal screen size (metric) | 108 cm |
| Brightness | 400 cd/m² |
| Picture enhancement | 3/2 - 2/2 motion pull down, Dynamic contrast enhancement, Progressive scan, Motion compens. deinterlacing, |
| Display colours | 1.07 Billion |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 degree |
| Dynamic contrast ratio | 500,000:1 |
Additional information
Connectivity
| Other connections | USB 3.0 |
|---|---|
| Video output | N/A |
| Video input | HDMI 2.0, USB-C with 4.5W PD, |
| External control | RJ45, IR 3.5 mm jack, |
| Line out | 3.5mm jack |
Convenience
| Keyboard control | Lockable, Hidden, |
|---|---|
| Signal loop through | IR Loopthrough |
| Remote control signal | Lockable |
| Placement | Landscape, Portrait, |
| Energy-saving functions | ECO mode |
| Tiled Matrix | Up to 3 x 3 |
| Network controllable | RJ45 |
Accessories
| Included accessories | Power cable 1.8M, Remote Control, External IR cable, AC Switch Cover, Logo Badge, USB Cover and screw, |
|---|---|
| Optional accessories | CRD22 Wifi & Bluetooth module, CRD73 Philips ScreenShare license, |
Dimensions
| Product weight (lb) | 24.69 lb |
|---|---|
| Product weight | 11.2 kg |
| Bezel width | 13.9 mm |
| Set Depth (inch) | 2.50 inch |
| Set Height | 561.2 mm |
| Wall Mount | 200 mm x 200 mm, M6 |
| Set Width (inch) | 38.31 inch |
| Set Width | 973.0 mm |
| Set Height (inch) | 22.09 inch |
| Set Depth | 63.5 mm mm |
Internal Player
| Storage | 16GB |
|---|---|
| CPU | Quad core Cortex A73 |
| Memory | 3GB RAM |
| GPU | ARM Mali G52 MC1 |
Power
| Standby power consumption | <0.5 W |
|---|---|
| Mains power | 100–240 V~, 50/60 Hz |
| Energy Label Class | G |
| Consumption (Typical) | 84 W |
Multimedia Applications
| USB Playback Picture | BMP, JPEG, PNG, |
|---|---|
| USB Playback Video | H.264, MPEG, H.263, H.265, AVI, MP4, VP8, VP9, MPEG4, WEBM, |
| USB Playback Audio | AAC, HEAAC, MPEG, |
Miscellaneous
| Regulatory approvals | CE, CB, RoHS, |
|---|---|
| On-Screen Display Languages | English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Swedish, Finnish, Norwegian, Dutch, |
| Warranty | 3 year warranty |
Operating conditions
| Temperature range (storage) | -20 ~ 60 °C |
|---|---|
| Altitude | 0 ~ 3000 m |
| Humidity range (operation)[RH] | 10 ~ 90% RH |
| Temperature range (operation) | 5 ~ 40 °C |
| MTBF | 30,000 hour |
Supported Display Resolution
| Computer formats | 1024 x 768, 60, 70, 75Hz, 1280 x 1024, 60Hz, 1280 x 720, 60Hz, 1280 x 800, 60Hz, 1440 x 900, 60Hz, 1600 x 1200, 60Hz, 1680 x 1050, 60Hz, 1920 x 1080, 60Hz, 3840 x 2160, 60Hz, |
|---|---|
| Video formats | 1080p, 50, 60Hz, 1080i, 50, 60Hz, 720p, 50, 60Hz, 2160p, 30, 60Hz, |
43bdl2050a-00-aen-en
