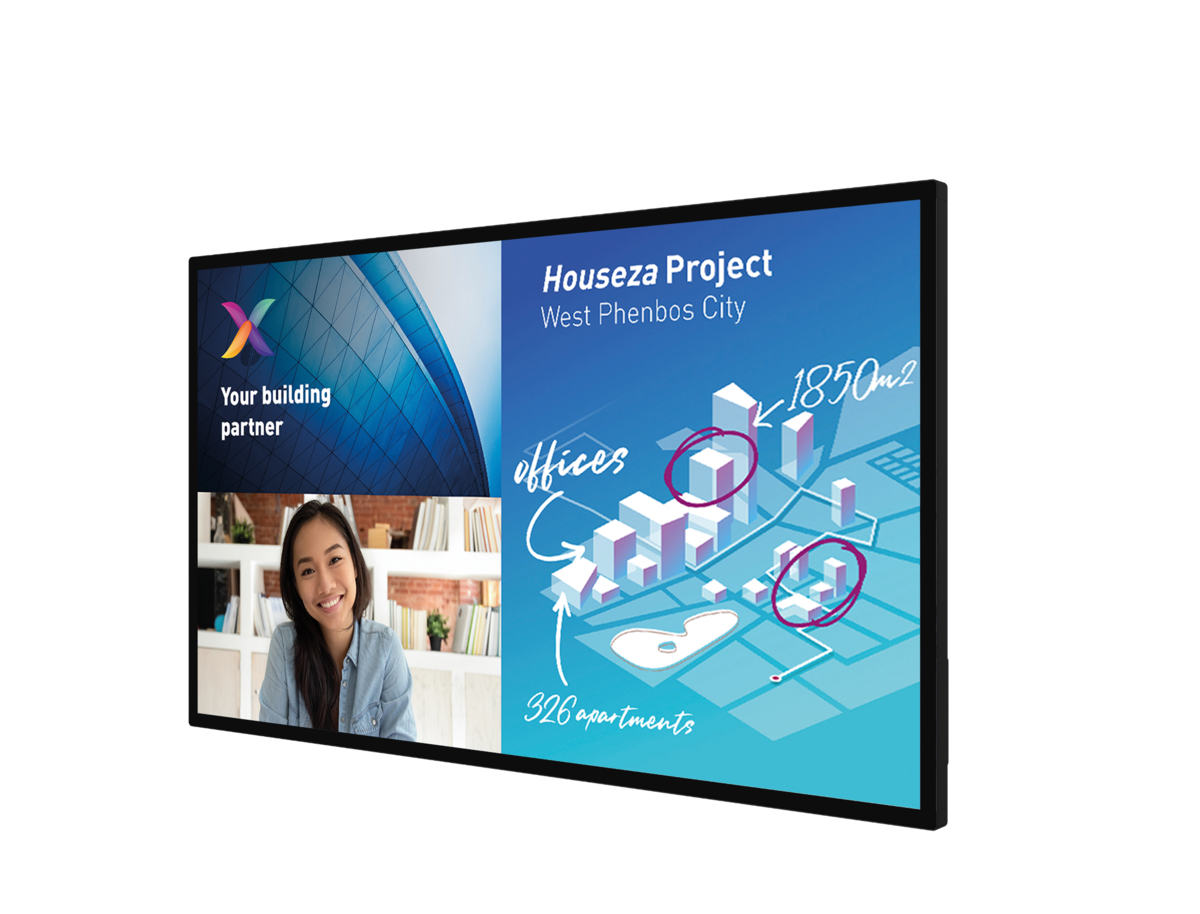

Philips C-Line 55BDL6051C/00 Touch Display

Philips C-Line 55BDL6051C/00 Touch Display

Product code: 55BDL6051C/00

Maximise engagement and inspire collaboration with an interactive Philips C-Line display. These Android-powered displays are made to withstand heavy daily usage and feature up to 10 touchpoints, edge-to-edge glass and a flush design.

SEND AN ENQUIRY

Description

Picture/Display

Diagonal screen size (inch)	54.64
Diagonal screen size (metric)	138.78
Panel resolution	3840 x 2160
Optimum resolution	3840 x 2160 @ 60 Hz
Brightness	350
Contrast ratio (typical)	1300:1
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Response time (typical)	9
Pixel pitch	0.315 (H) x 0.315 (V) mm
Display colours	1.07 billion
Viewing angle (horizontal)	178
Viewing angle (vertical)	178
Picture enhancement	3/2 - 2/2 motion pull down, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan
Operating system	Android 9

Additional information

Connectivity

Video input	Display Port1.2 (x 1), HDMI 2.0 (x 4), DVI-I (x 1), USB-C, USB 2.0 (x 2), USB 3.0 (x 2)
Video output	DisplayPort 1.2 (x 1), DVI - D (x 1), HDMI 2.0 (x 2)
Audio input	3.5 mm jack
Audio output	3.5 mm Jack (x 2)
Other connections	OPS, micro SD
External control	RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack

Supported Display Resolution

Computer formats	1920 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 1680 x 1050, 60 Hz / 1600 x 1200, 60 Hz / 1600 x 900, 60 Hz / 1440 x 1050, 60 Hz / 1440 x 900, 60, 75 Hz / 1400 x 1050, 60, 75 Hz / 1366 x 768, 60 Hz / 1360 x 768, 60 Hz / 1280 x 1024, 60, 67, 75 Hz / 1280 x 960, 60 Hz / 1280 x 800, 60, 75 Hz / 1280 x 768, 60 Hz, 75 Hz / 1280 x 720, 60, 70 Hz / 1152 x 900, 66 Hz / 1152 x 864, 60, 70, 75 Hz / 1024 x 768, 60, 70 Hz / 960 x 720, 75 Hz / 848 x 480, 60 Hz / 832 x 624, 75 Hz / 800 x 600, 56, 60, 72, 75 Hz / 720 x 400, 70 Hz / 640 x 350, 70 Hz / 640 x 480, 60, 67, 72, 75 Hz
Video formats	1080p, 50, 60 Hz / 576p, 50 Hz / 480p, 60 Hz / 4K x 2K, 50, 60 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz
UHD Formats	3840 x 2160, 24, 25, 30, 60 Hz / 3840 x 2160, 50 Hz

Dimensions

Set Width	1264.40
Set Height	735.20
Set Depth	87.9 mm(D@wall mount)/97.8 mm(D@handle)
Set Width (inch)	49.78
Set Height (inch)	28.94
Set Depth (inch)	3.46 (D@wall mount) / 3.85 (D@handle)
Bezel width	1.50 mm(even)
Product weight (lb)	72.75
Product weight	33
Wall Mount	400 (H) x 400 (V) mm, M6
Smart Insert mount	6M4L6, 100 mm pitch, Max. Size 240 mm x 150 mm

Convenience

Placement	Landscape, Landscape (18/7), Portrait (18/7)
Keyboard control	Hidden, Lockable
Signal loop through	RS232, IR Loop through
Network controllable	RJ45/RS232
Energy-saving functions	Smart Power
Screen-saving functions	Pixel Shift, Low Bright
Ease of installation	Smart Insert
DPMS power saving system	Yes

Power

Standby power consumption	<0.5 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical)	135
Consumption (Max)	300 W
Energy Label Class	G

Operating conditions

Temperature range (operation)	0 ~ 40
Temperature range (storage)	-20 ~ 60
Relative humidity	20~80% (operating), 5~95% (storage)
Altitude	0 ~ 3000 m
MTBF	50,000

Sound

Built-in speakers	2 x 20 W RMS

Accessories

Included Accessories	Philips logo (x 1), Cleaning cloth (x 1), DVI-I Cable (1.8 m) (x 1), HDMI Cable (3 m) (x 1), IR sensor cable (1.8 m) (x 1), Power cable (x 3), RS232 Daisy chain cable (x 1), Touch Pen (x 2), USB A to B cable (3 m) (x 1), USB Cover (x 1), AAA batteries (x 1), Quick start guide (x 1), Remote control (x 1), RS232 cable (3 m) (x 1)

Multimedia Applications

USB Playback Audio	AAC/M4A/MP3/WMA
USB Playback Picture	BMP/JPEG/JPG/PNG
USB Playback Video	ASF/AVI/FLV/MKV/MP4/MPEG/MPG/TS/VOB/WEBM/WMV/DAT

Miscellaneous

On-Screen Display Languages	English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish
Regulatory approvals	CE, RoHS, CB, CU, EMF, EPA, FCC Class A, VCCI, ETL
Warranty	3 year warranty
