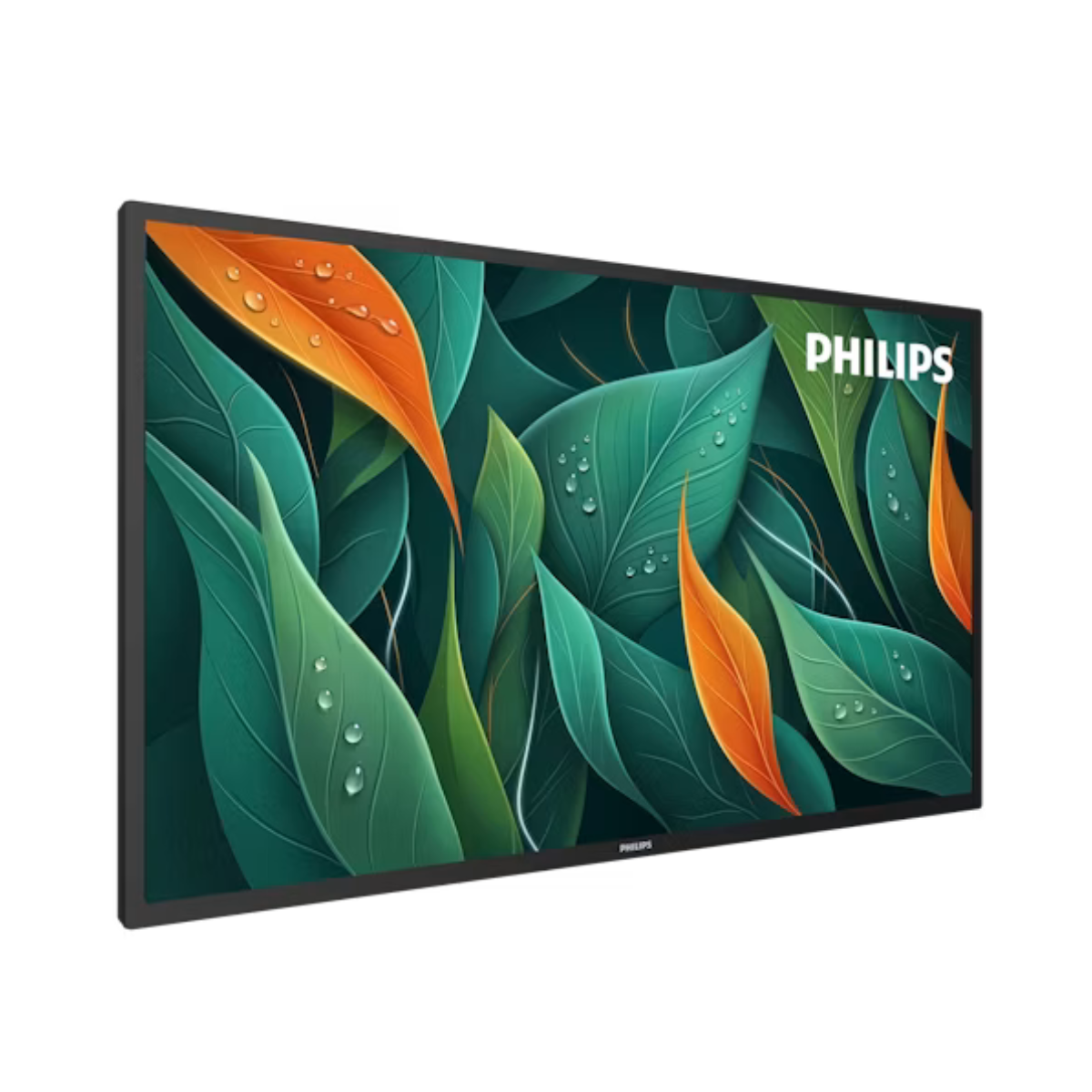

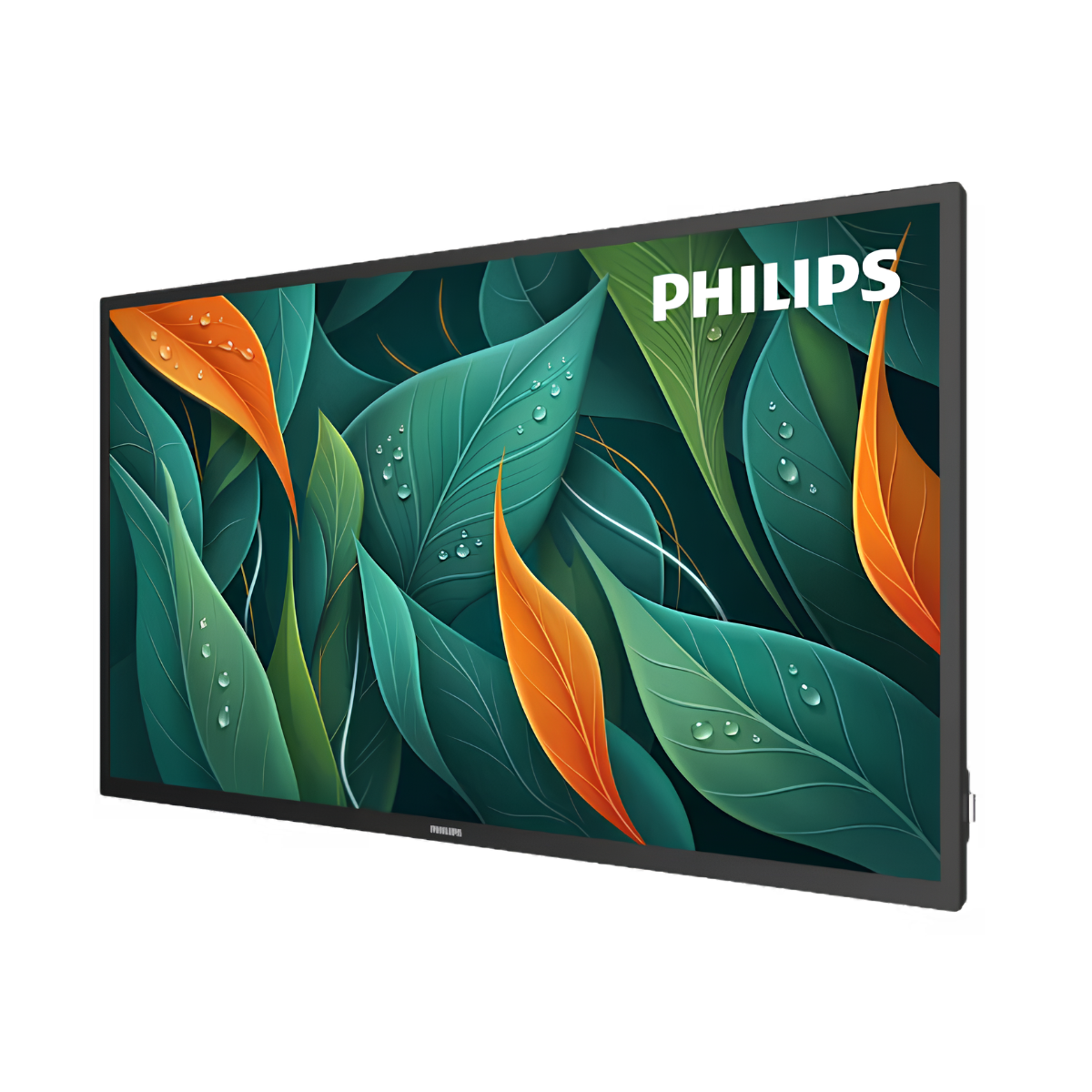

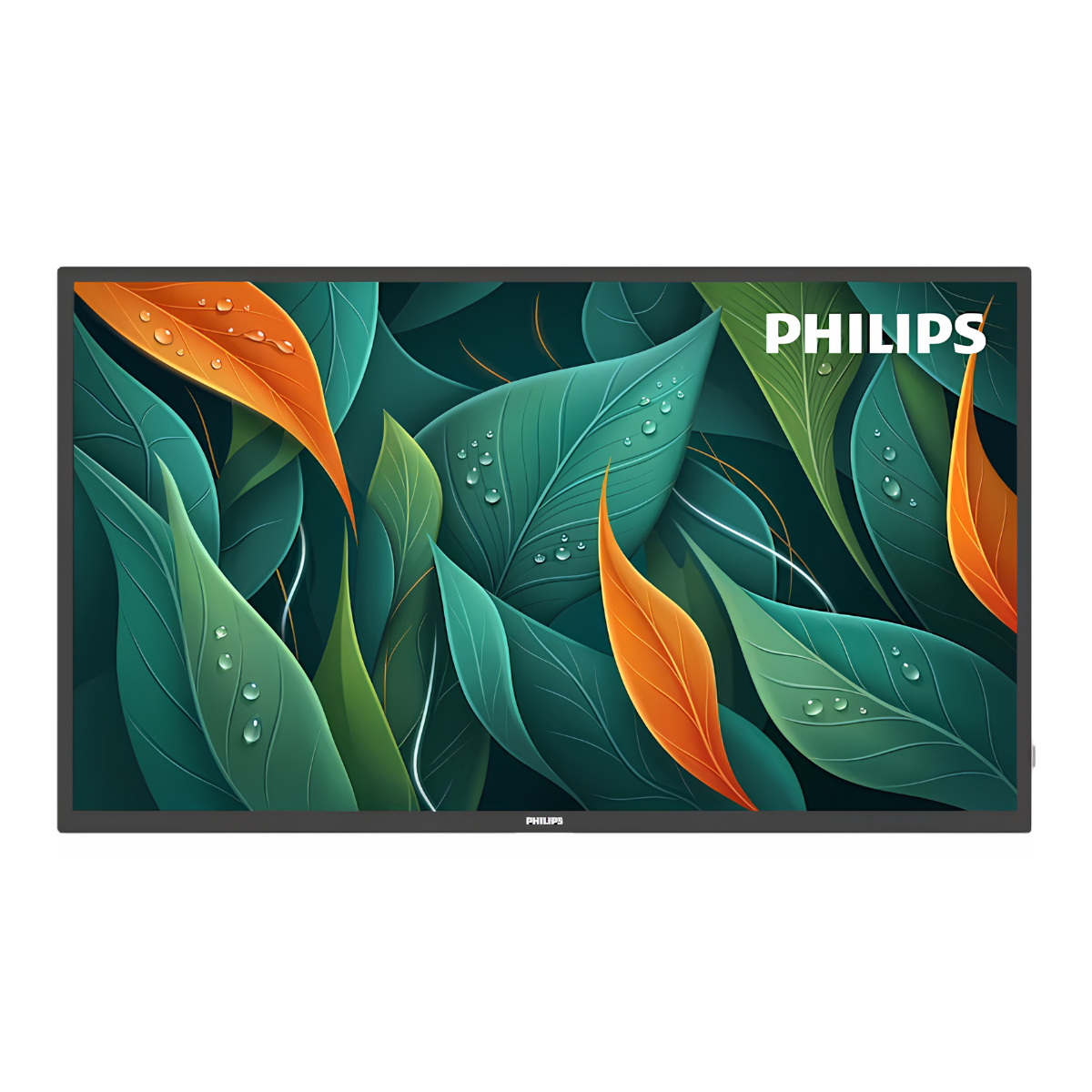

Philips D-Line 32BDL4512D/00 Digital Signage
Product code:Combining excellent image quality with simple and seamless content connectivity, the Philips Signage 4512D is a professional signage display designed for reliable 24/7 operation. Built-in energy-saving features help reduce power consumption, making it a practical solution for a wide range of digital signage applications.
SEND AN ENQUIRYDescription
Picture/Display
| Viewing angle (vertical) | 178 degrees |
|---|---|
| Screen diagonal size (metric) | 81.28 cm |
| Dynamic contrast ratio | 500.000:1 |
| Mist | 25% |
| Diagonal screen size (inches) | 32 inches |
| Optimal resolution | 1920 x 1080 a 60 Hz |
| Display resolution | 1920x1080p |
| Format | 16:9 |
| Display colors | 16.7 million |
| Response time (typical) | 8 ms |
| Panel technology | ADS |
| Contrast factor (typical) | 1200:1 |
| Viewing angle (horizontal) | 178 degrees |
| Pixel Pitch | 0,36375 x 0,36375 mm |
| Brightness (maximum) | 500 cd/m² |
Additional information
Supported Display Resolution
| Video formats | 1080i, 50, 60Hz, 576i, 50Hz, 576p, 50Hz, 480p, 60Hz, 480i, 60Hz, 1080p, 50, 60Hz, 720p, 50,60 Hz, |
|---|---|
| Computer formats | 1920 x 1080, 60Hz, 1024 x 768, 60Hz, 1280 x 1024, 60Hz, 1280 x 720, 60Hz, 1440 x 900, 60 Hz, 1600 x 900, 60Hz, 1680 x 1050, 60Hz, 640 x 480, 60Hz, 800 x 600, 60Hz, |
Connectivity
| Video output (Uscita video) | HDMI 2.0 |
|---|---|
| Audio output | 3.5mm jack |
| Video input | Display Port1.2, USB-C, HDMI 2.0, USB 3.0, |
| External control | RJ45, RS232C 2.5 mm jack, IR 3.5 mm jack, |
Convenience
| Keyboard control | Hidden, Lockable, |
|---|---|
| Screen saving features | Pixel Shift, Low Brightness |
| Controllable via network | RS232, RJ45, |
| Positioning | Landscape, Portrait, |
| Energy saving functions | ECO mode |
| Signal loop through | RS232, IR Loopthrough, HDMI, |
Operating conditions
| Humidity range (storage) [RH] | 5 - 95% RH |
|---|---|
| Altitude | 0 ~ 3000 m |
| MTBF | 50.000 ore |
| Humidity range (operation) [RH] | 20 - 80% RH |
| Temp. range (operation) | 0 ~ 40 °C |
| Temp. range (storage) | -20 ~ 60 °C |
Power
| Mains voltage | 100 ~ 240 VAC, 50~ 60 Hz |
|---|---|
| Standby power consumption | <0.5 W |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Accessories
| Accessories included | Philips logo, AC power cord, AC Switch Cover, Quick start guide, Remote control & AAA batteries, RS232 cable, |
|---|---|
| Pedestal | BM05911 |
Miscellaneous
| Warranty | 3-year warranty |
|---|---|
| Approvals | CE, FCC, Class A, CCC, RoHS, CB, BSMI, EMF, VCCI, PSB, ETL, CECP, EAC, |
| Lingue OSD (On-Screen Display) | English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish, |
Multimedia Applications
| USB Audio Playback | AAC, HEAAC, MPEG, |
|---|---|
| USB Image Playback | BMP, JPEG, PNG, |
| USB Video Playback | MPEG, H.263, H.264, H.265, |
Dimensions
| Set width | 726,5 mm |
|---|---|
| Frame width | 11,9 mm, 17,2 mm |
| Product weight | 5,7 Kg |
| Set Height (inches) | 16.75 inches |

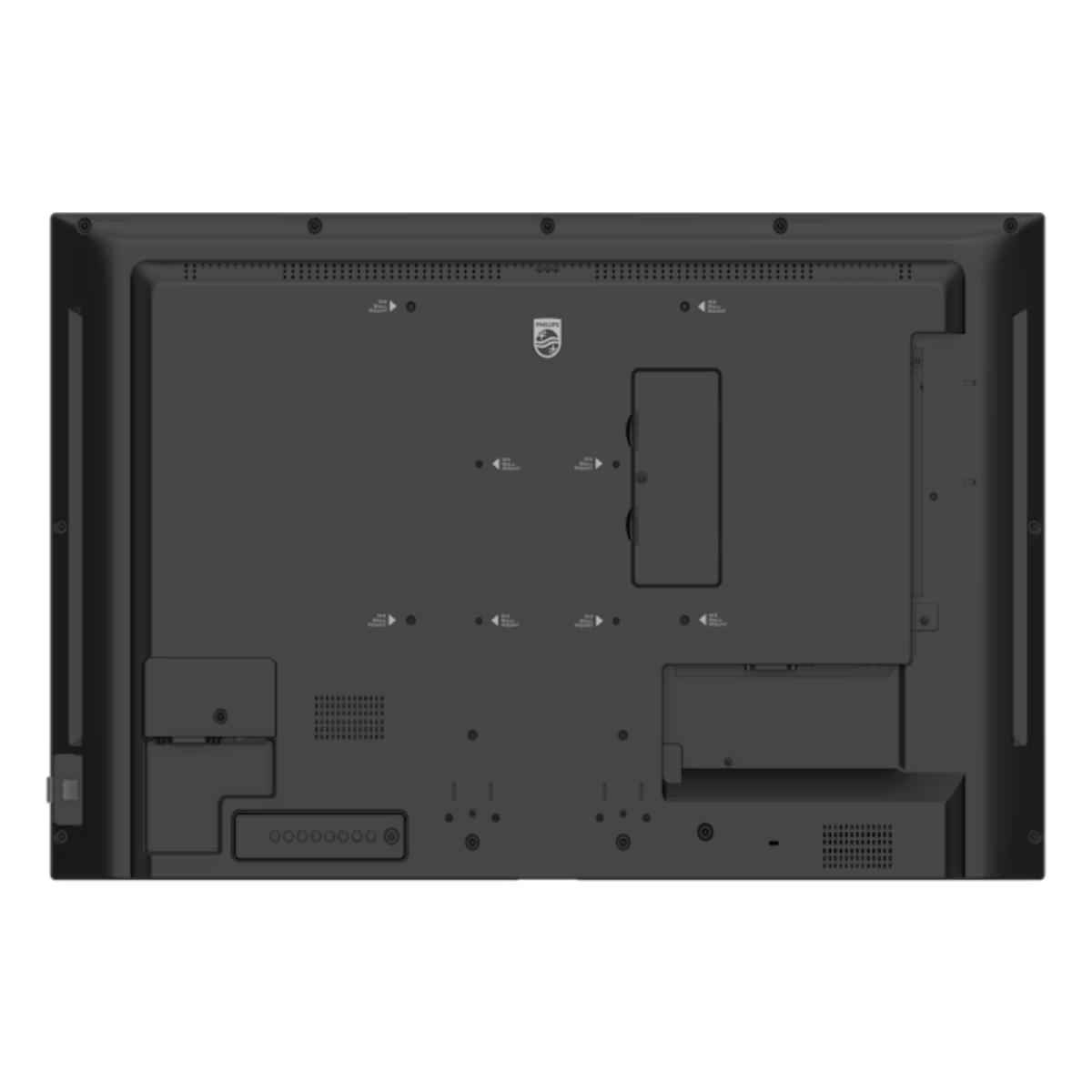

| Wall mount | 100 x 100 mm / 200 x 200 mm, M4 |
| Product weight (lb) | 12,57 lb |
| Set depth | 65,1/69,1 mm |
| Set height | 425,4 mm |
| Set Width (inches) | 28.60 inches |
