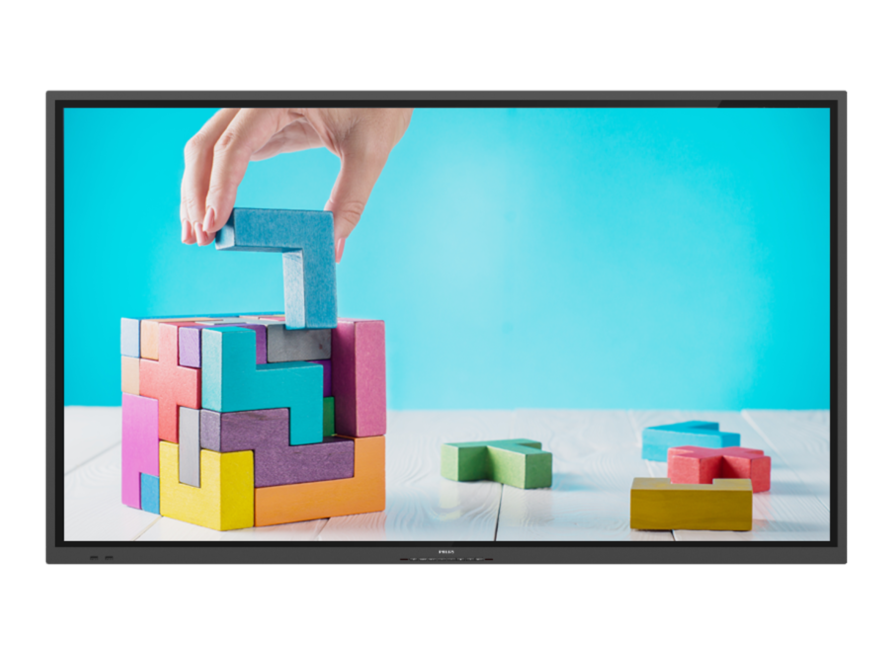

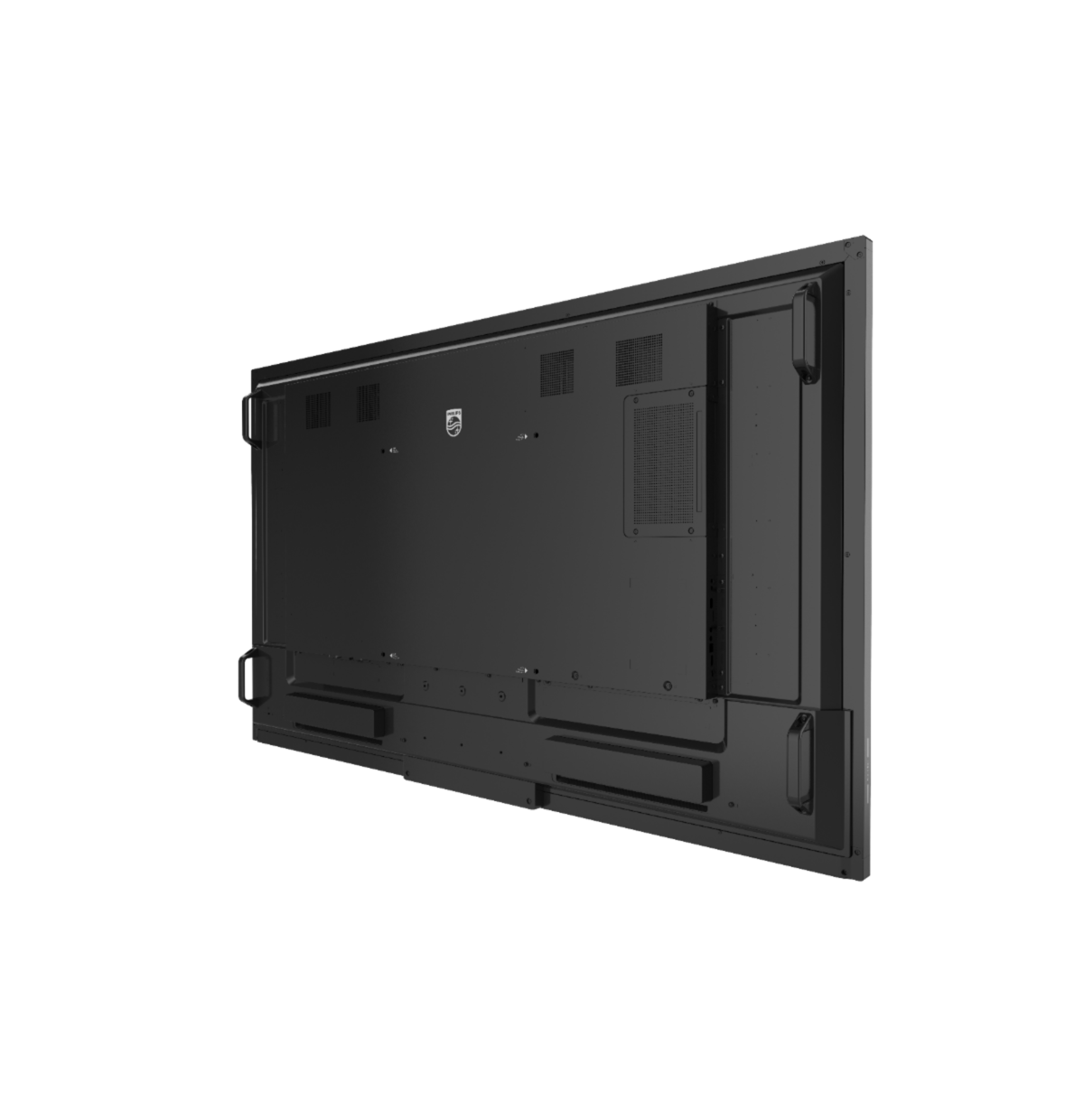

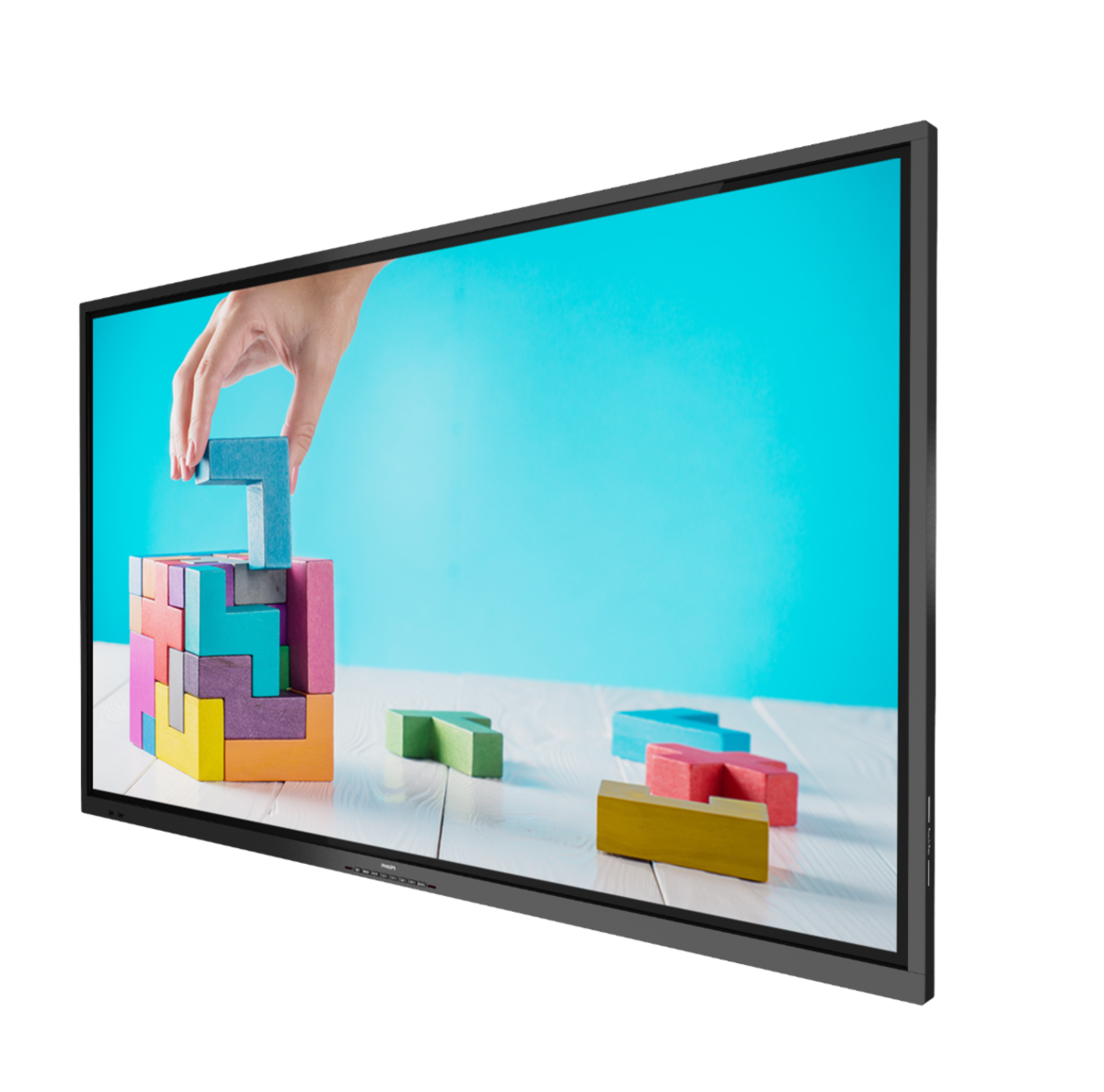

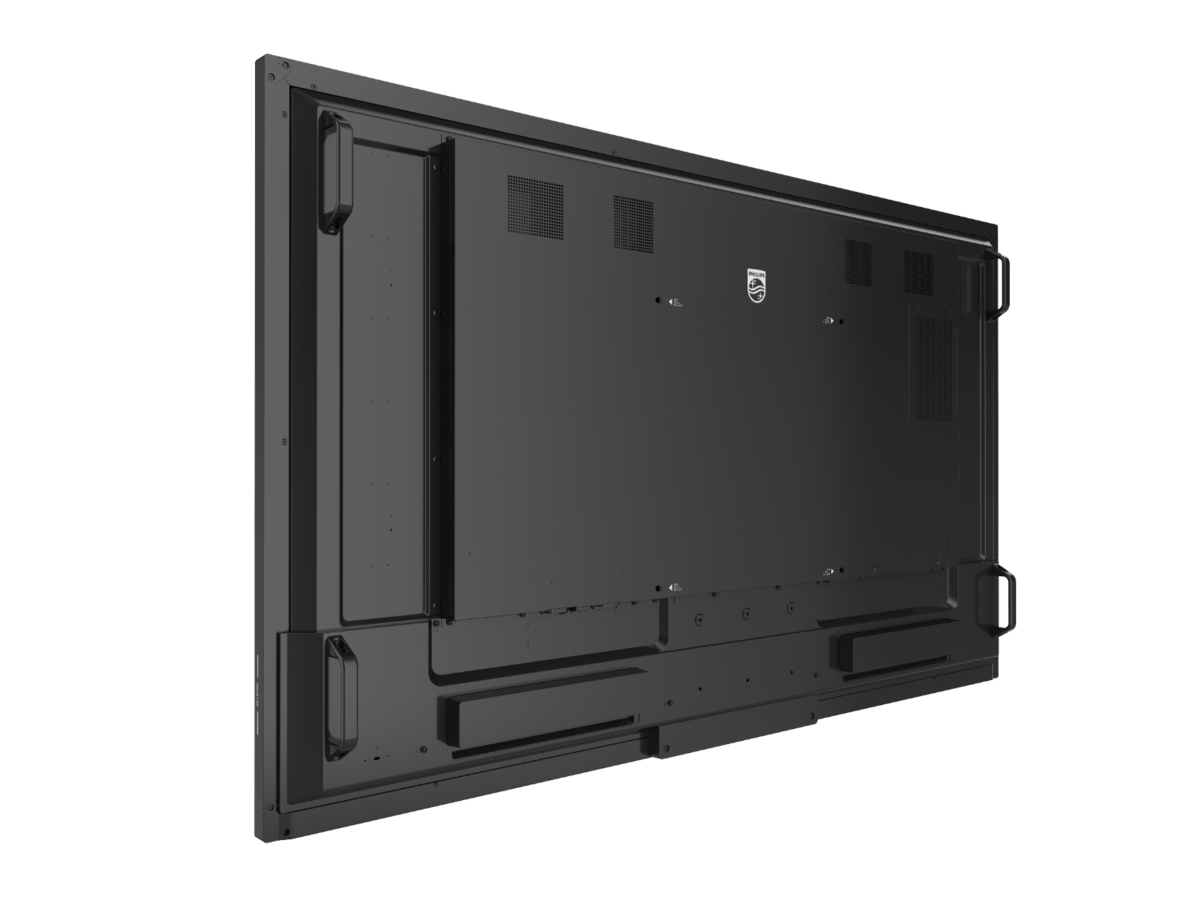

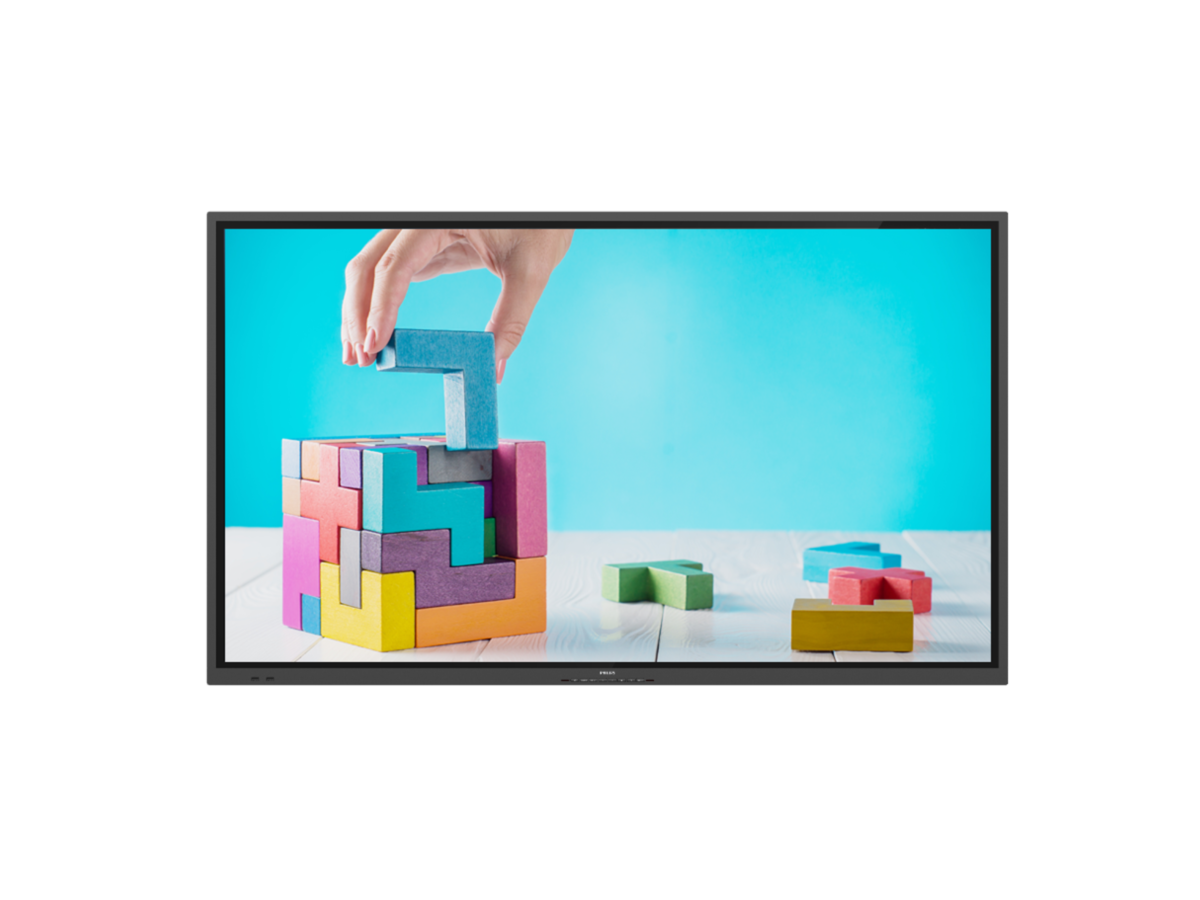

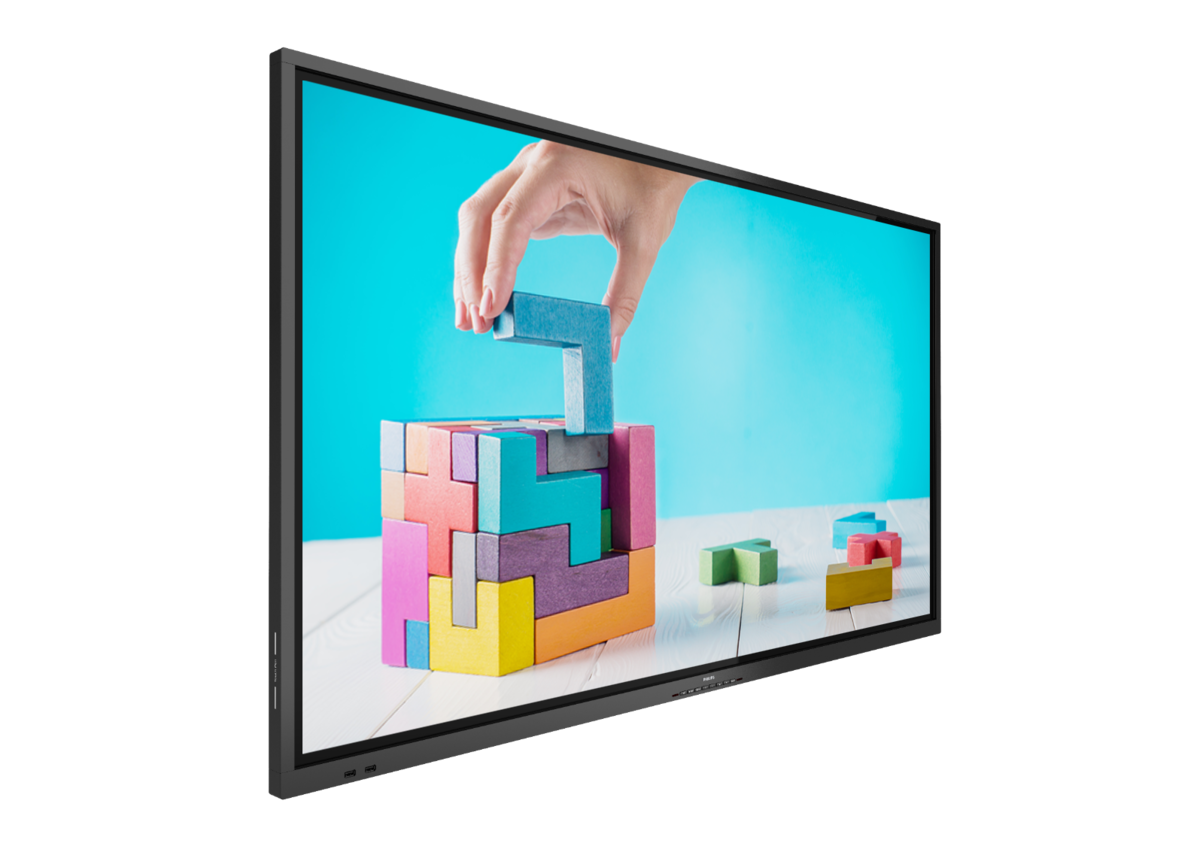

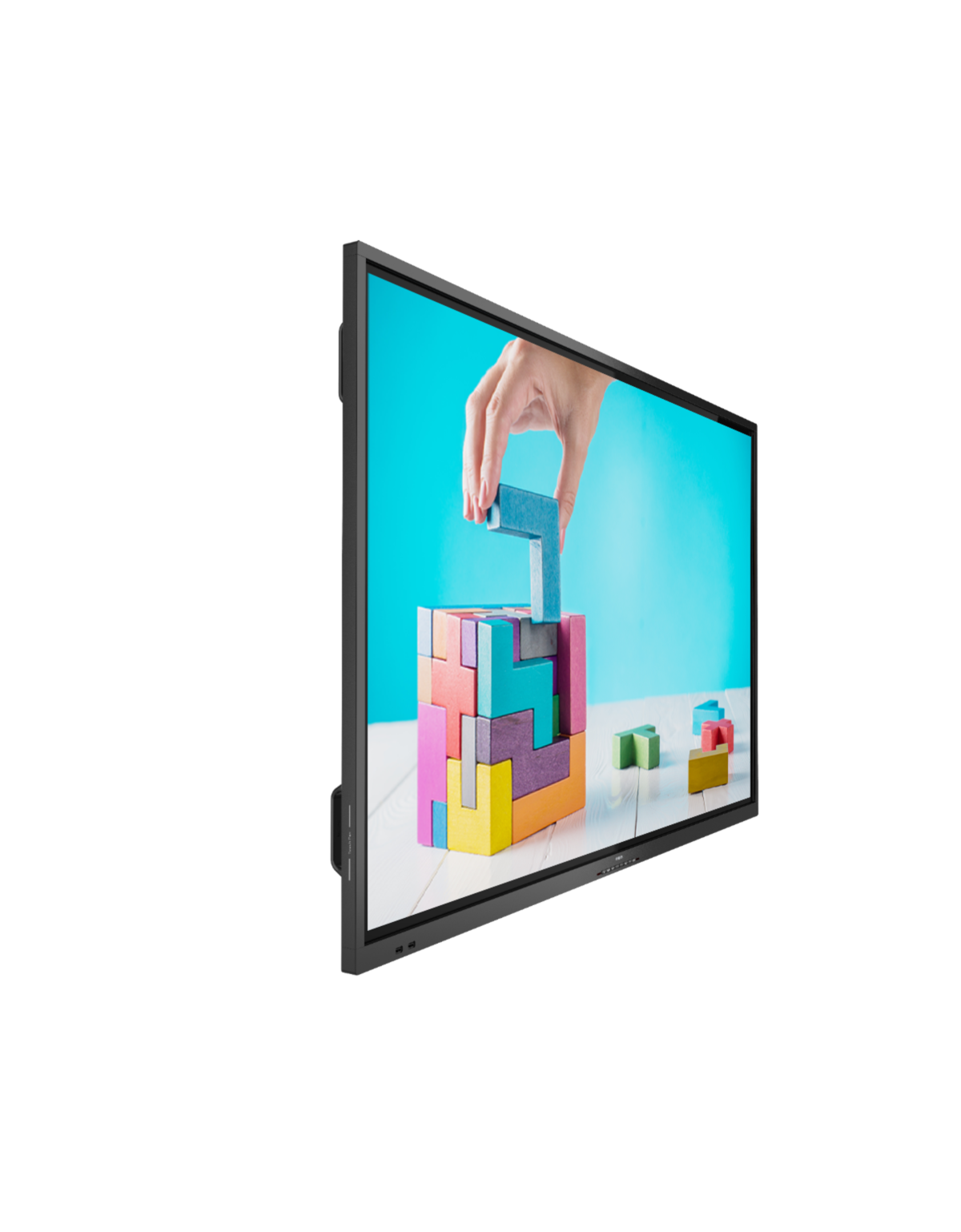

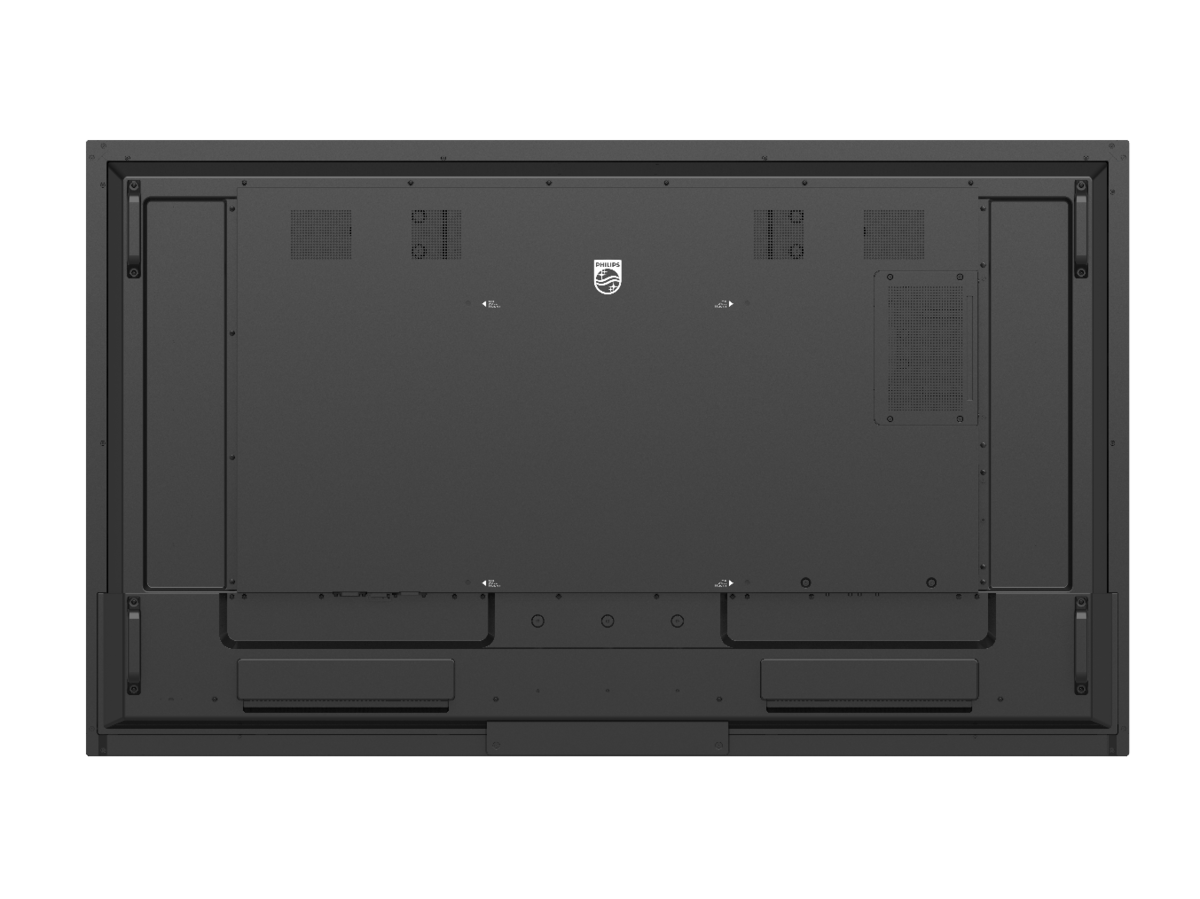

Philips E-Line 65BDL3052E/00 Touch Display
Product code:The Philips E-Line touch display maximises engagement and inspires collaboration with up to 20 touchpoints. Powered by Android and featuring a toughened anti-glare glass, it's made to withstand heavy daily usage in the classroom.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 163.9 |
|---|---|
| Diagonal screen size (inch) | 65 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 350 |
| Response time (typical) | 10 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.372 (H) x 0.372 (V) [mm] |
| Display colours | 1.07 B |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement |
| Panel technology | ADS |
| Contrast ratio (typical) | 1200:1 |
| Operating system | Android 8.0 |
| OS UI resolution | 1920 x 1080 @ 60 Hz |
Additional information
Supported Display Resolution
| Computer formats | 720 x 400, 70 Hz / 832 x 624, 75 Hz / 1440 x 900, 60 Hz / 1600 x 900, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz / 1024 x 768, 60 Hz / 1152 x 870, 75 Hz / 1280 x 1024, 60 Hz / 1280 x 720, 60 Hz / 3840 x 2160, 30, 60 Hz / 640 x 480, 60, 67, 75 Hz / 800 x 600, 60 Hz |
|---|---|
| Video formats | 480i, 60 Hz / 480p, 60 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 2160p, 30, 60 Hz / 576i, 50 Hz / 576p, 50 Hz |
Connectivity
| Video input | DVI-D (x 1), HDMI 2.0 (x 3), VGA (Analogue D-Sub) (x 1), USB 2.0 (x4), USB-C (up to 65 W) |
|---|---|
| Audio input | 3.5 mm mini jack (x 1) |
| Audio output | 3.5 mm Mini Jack (x 1) |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
| Other connections | OPS, micro SD, USB-B (x 3) |
Convenience
| Placement | Landscape (18/7) |
|---|---|
| Screen-saving functions | Pixel Shift, Low Brightness |
| Signal loop through | RS232, IR Loop through |
| Ease of installation | AC Out, Smart Insert |
| Network controllable | RS232/RJ45 |
| Keyboard control | Lockable |
| Remote control signal | Lockable |
| Other convenience | Carrying handles |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20~60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20–80% (without condensation) |
| Humidity range (storage) [RH] | 5–95% (without condensation) |
Power
| Consumption (Typical) | 155 |
|---|---|
| Consumption (Max) | 376 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50/60 Hz |
| Power Saving Features | Smart Power |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 15 W |
|---|
Accessories
| Optional accessories | Interact dongles |
|---|---|
| Included Accessories | Cleaning cloth (x 1), HDMI Cable (3 m) (x 1), IR sensor cable (1.8 m) (x 1), Philips logo (x 1), Quick start guide (x 1), Remote control and AAA batteries, RS232 daisy chain cable (x 1), Touch Pen (x 2), USB A to B cable (3 m) (x 1), RS232 cable, AC Power Cord, Cable clip (x 3), AC switch cover and Screw x 1, DVI-D cable, USB cover and screws |
Miscellaneous
| On-Screen Display Languages | Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE, FCC Class A, RoHS, CB, EAC, EMF, ETL |
| Warranty | 5-year warranty |
Multimedia Applications
| USB Playback Video | H.263, H.264, H.265, MPEG1/2, MPEG4, VP9 |
|---|---|
| USB Playback Picture | BMP/JPEG/PNG |
| USB Playback Audio | AAC/MPEG/HEAAC |
Interactivity
| Multi-touch technology | 0-gap Infrared touch |
|---|---|
| Touch points | 20 simultaneous touch points |
| Plug and play | HID compliant |
| Protection glass | Anti-Glare, Tempered safety glass 7 MOHS |
Weight
| Product with packaging (kg) | 52.7 |
|---|---|
| Product with packaging (lb) | 116.18 |
| Product without stand (kg) | 43.15 |
| Product without stand (lb) | 95.13 |
Internal Player
| CPU | 2 x A53 + 2 x A73 |
|---|---|
| GPU | ARM Mali G51 |
| Memory | 3 GB DDR3 |
| Storage | 16 GB EMMC |
Dimensions
| Smart Insert mount | 100 x 100 mm, 6xM4L6 |
|---|---|
| Set Width | 1494.3 |
| Set Height | 883.2 |
| Set Depth | 99.5 mm(D_Max)/78.5 mm(D_Wallmount) |
| Set Width (inch) | 58.83 |
| Set Height (inch) | 34.77 |
| Set Depth (inch) | 3.92 (D_Max)/3.09(D_Wallmount) |
| Bezel width | 17.8 mm(T/R/L) x 31.7 mm(B) |
| Wall Mount | 400 x 400 mm, M8 |
| Weight | 43.15 |
