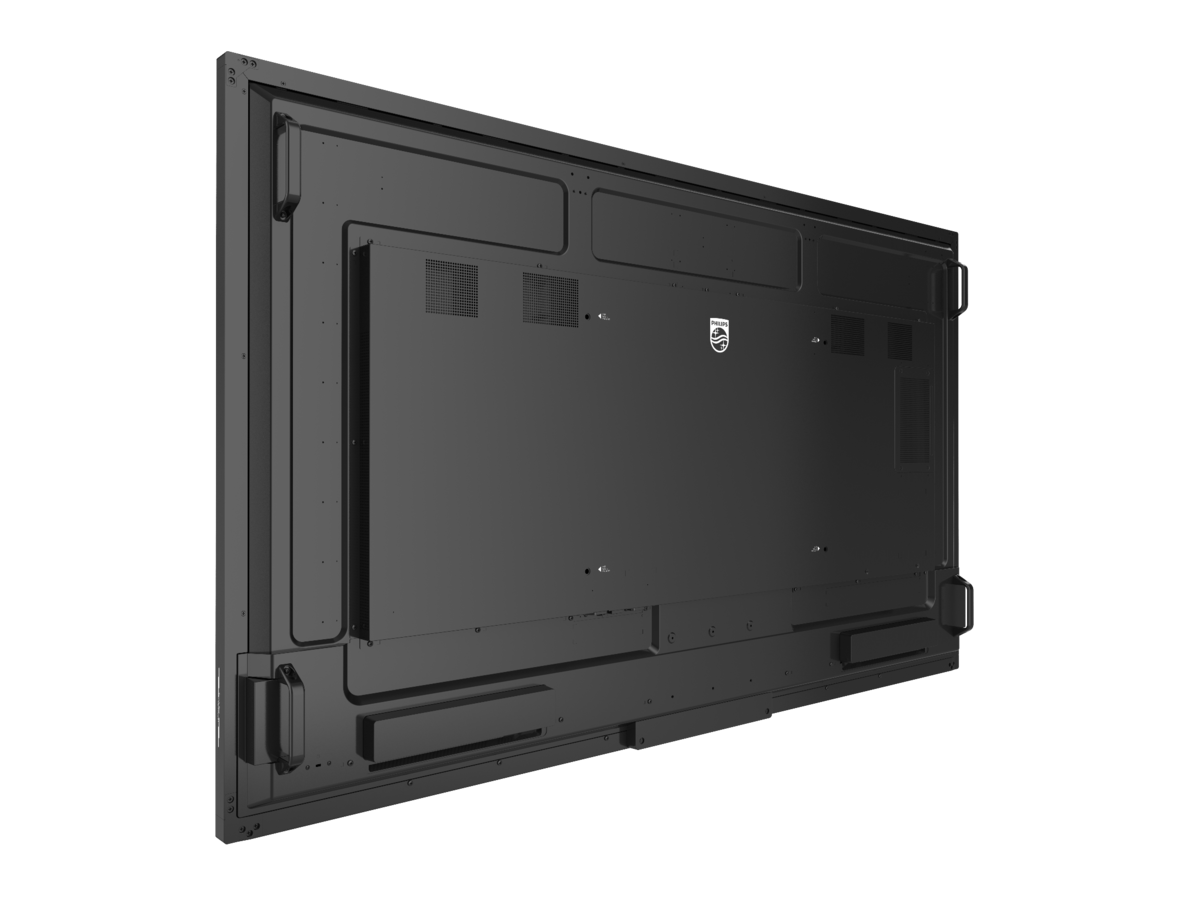

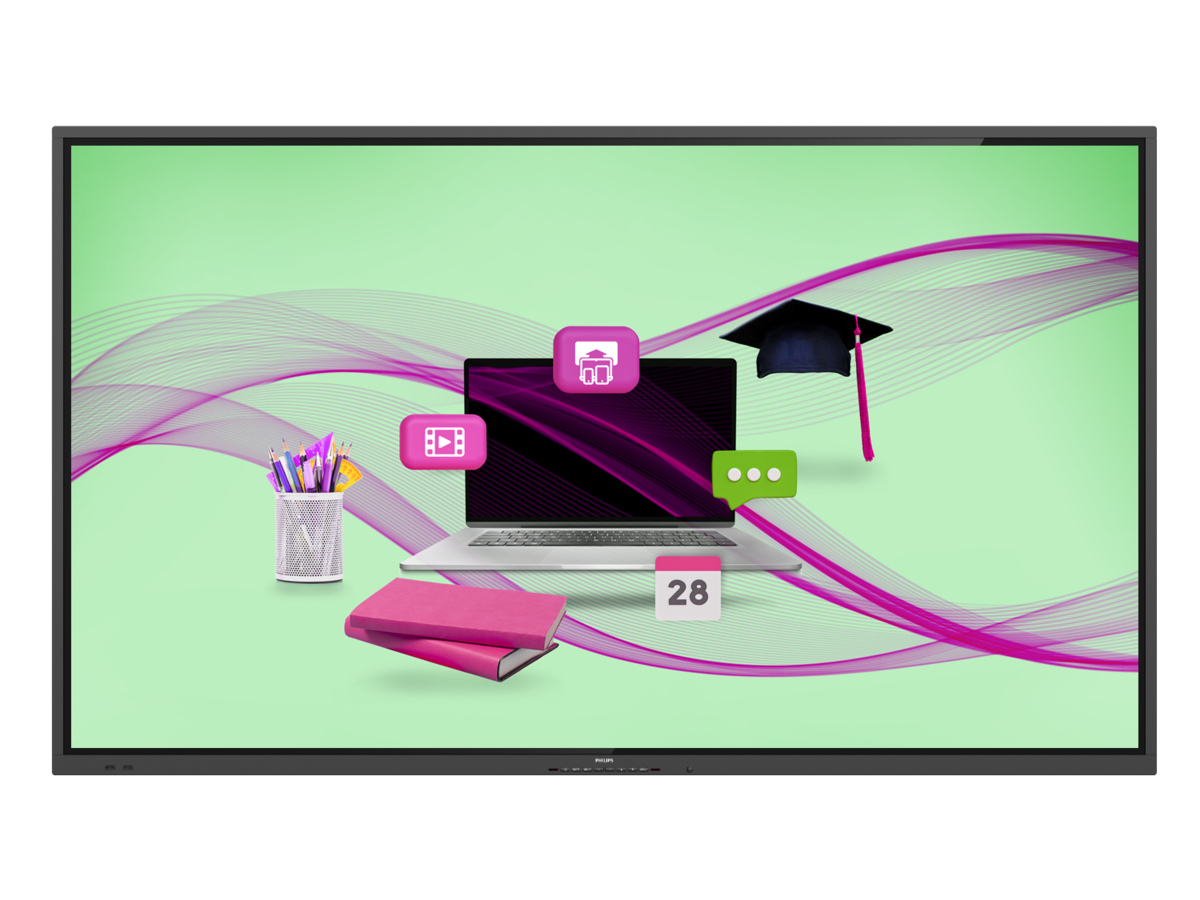

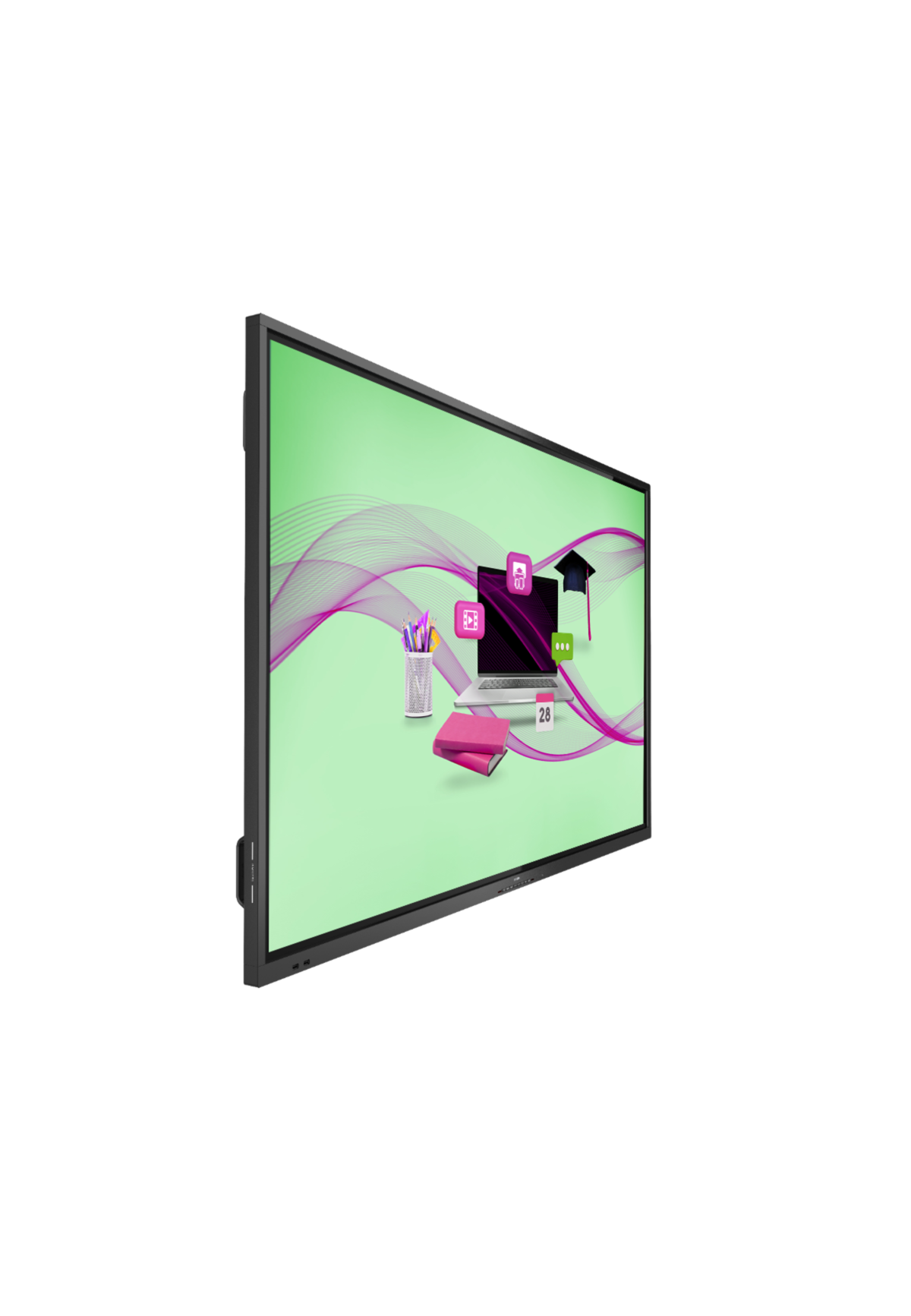

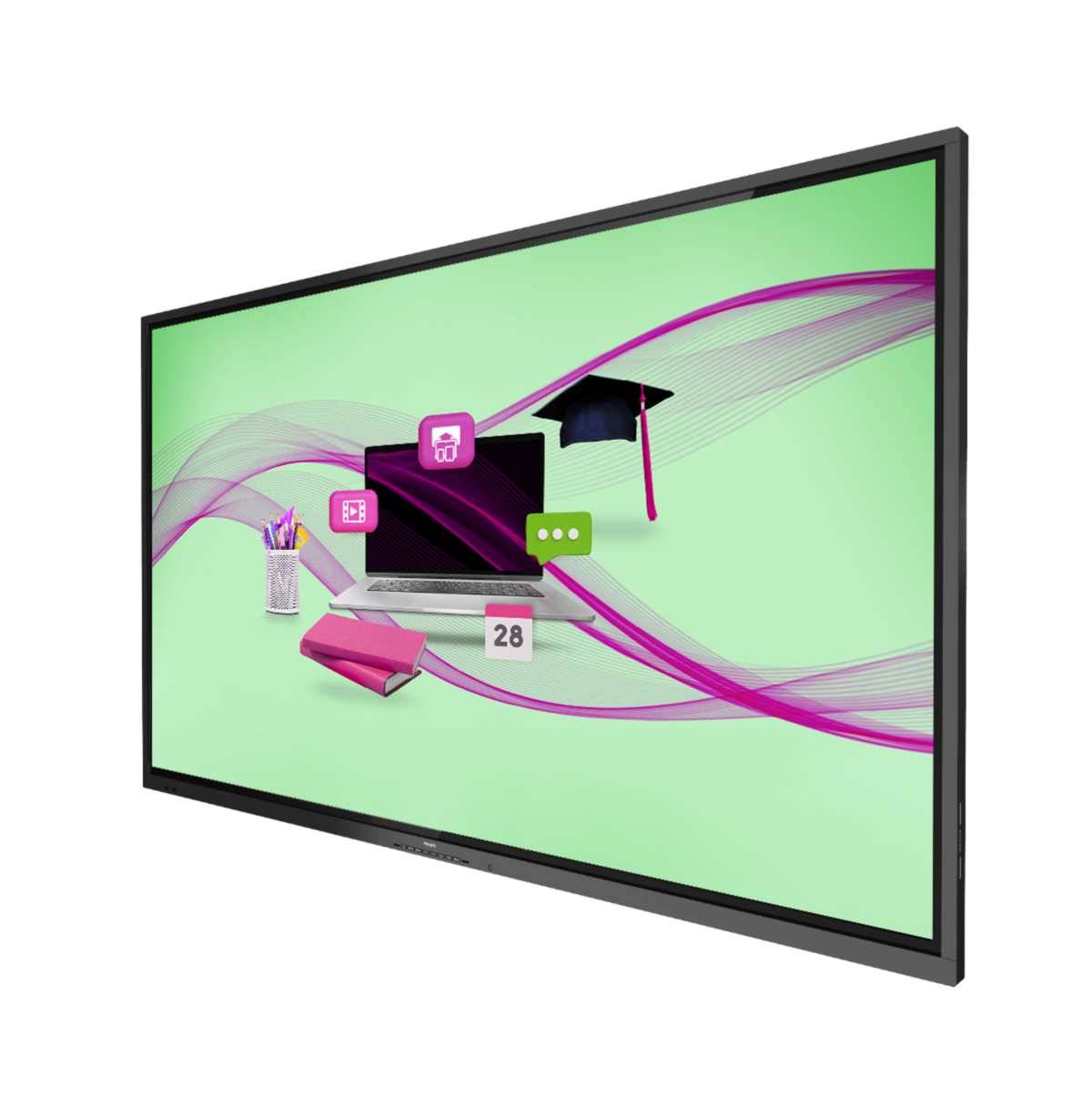

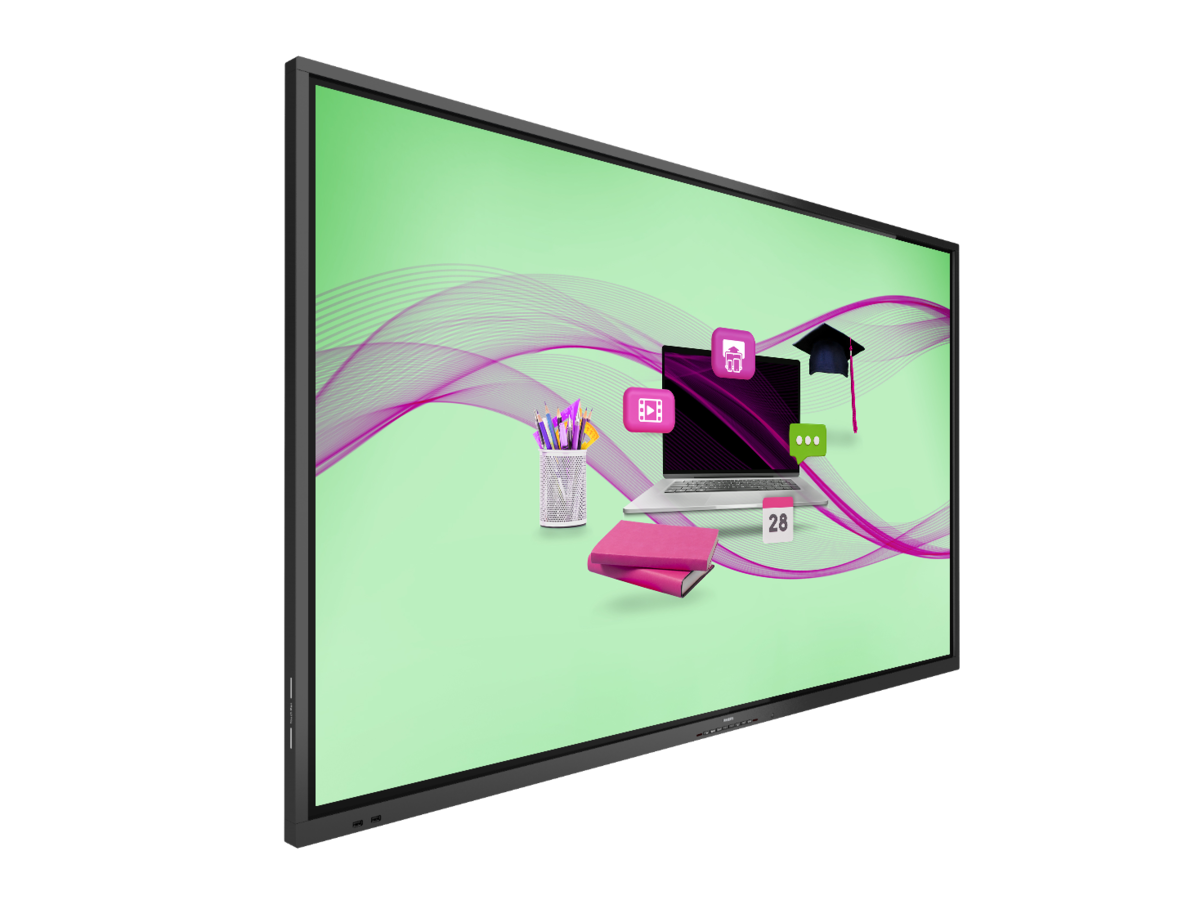

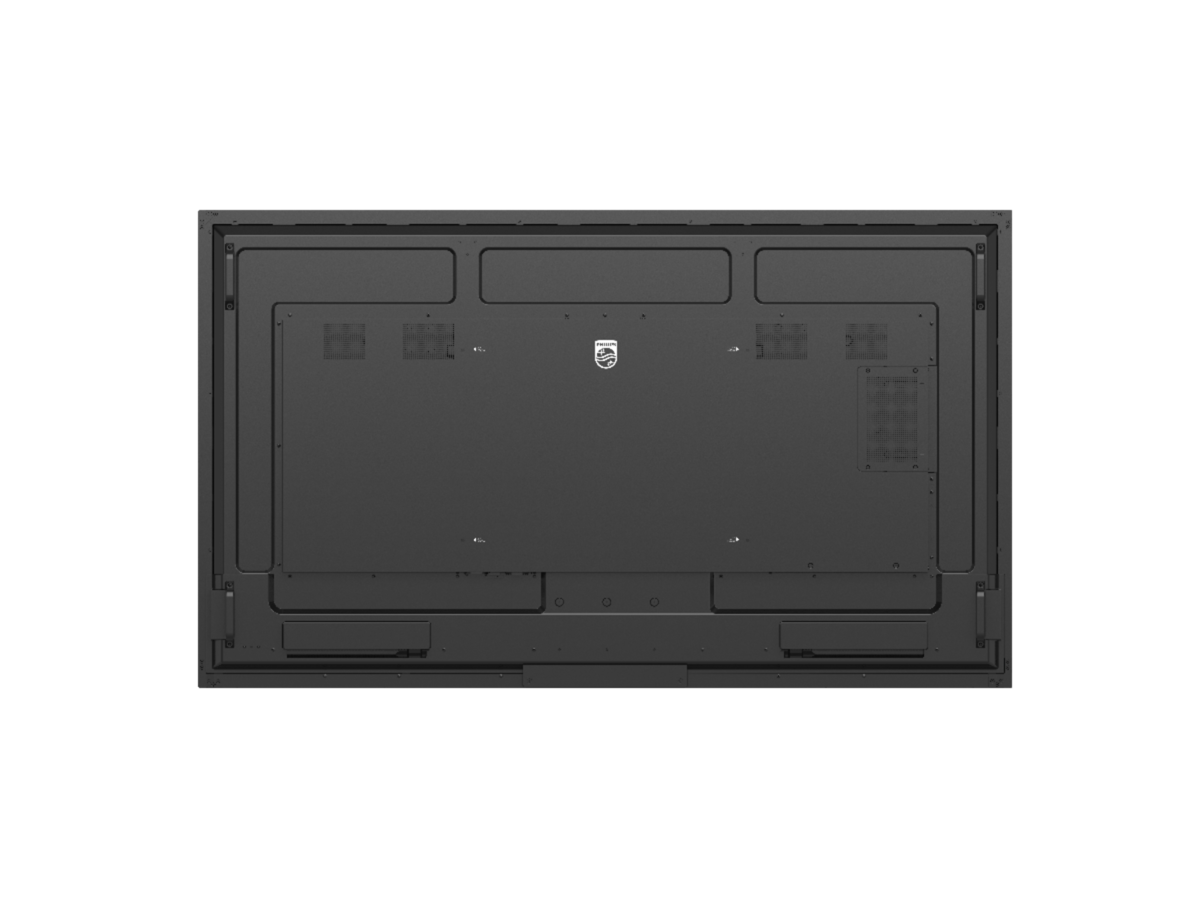

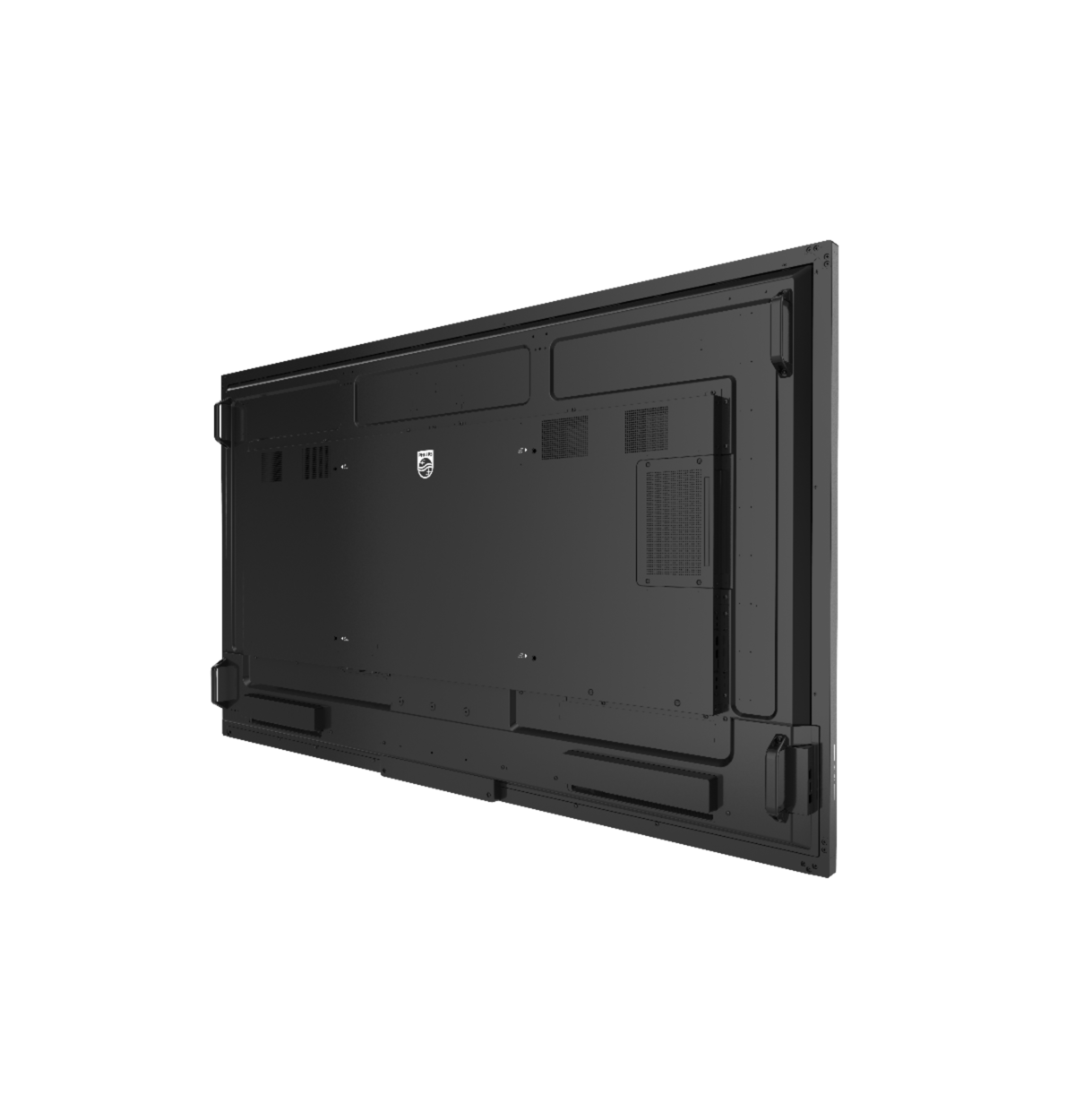

Philips E-Line 75BDL4052E/00 Touch Display
Product code:Inspire collaboration. Maximise engagement. This top-spec Philips E-Line touch display is powered by Android and features enhanced educational software and programs compatibility, 20 touchpoints and a toughened anti-glare glass.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 189.3 |
|---|---|
| Diagonal screen size (inch) | 74.5 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 350 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 10 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.4296 x 0.4296 mm |
| Display colours | 1.07 billion |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement |
| Panel technology | ADS |
| Contrast ratio (typical) | 1200:1 |
| Operating system | Android 10 |
| OS UI resolution | 3840 x 2160 @ 60 Hz |
Additional information
Supported Display Resolution
| Computer formats | 640 x 350, 70 Hz / 640 x 480, 60, 67, 72, 75 Hz / 800 x 600, 56, 60, 72, 75 Hz / 832 x 624, 75 Hz / 848 x 480, 60 Hz / 960 x 720, 75 Hz / 1024 x 768, 60, 70 Hz / 1152 x 864, 60, 70, 75 Hz / 1152 x 900, 66 Hz / 1280 x 720, 60, 70 Hz / 1280 x 768, 60 Hz, 75 Hz / 1280 x 800, 60, 75 Hz / 1280 x 960, 60 Hz / 1280 x 1024, 60, 67, 75 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1400 x 1050, 60, 75 Hz / 1600 x 900, 60 Hz / 1600 x 1200, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz / 1920 x 1200, 60 Hz / 3840 x 2160, 24, 25, 30, 60 Hz / 1440 x 900, 60 Hz / 720 x 400, 70 Hz |
|---|---|
| Video formats | 480p, 60 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 2160p, 50, 60 Hz / 480i, 60 Hz |
Connectivity
| Video input | DVI-D (x 1), HDMI 2.0 (x 3), USB 2.0 (x 3), USB 3.0 (x 3), USB-C (up to 65 W) |
|---|---|
| Audio input | 3.5 mm mini jack (x 1) |
| Video output | HDMI 2.0 (x 1) |
| Audio output | 3.5 mm Mini Jack (x 1) |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
| Other connections | OPS, micro SD, USB-B (x 3) |
Convenience
| Placement | Landscape (18/7) |
|---|---|
| Screen-saving functions | Pixel Shift, Low Brightness |
| Signal loop through | RS232, IR Loop through |
| Ease of installation | Smart Insert, AC Out |
| Network controllable | RS232/RJ45 |
| Keyboard control | Lockable |
| Remote control signal | Lockable |
| Other convenience | Carrying handles |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20–80% (without condensation) |
| Humidity range (storage) [RH] | 5–95% (without condensation) |
Power
| Consumption (Typical) | 190 |
|---|---|
| Consumption (Max) | 450 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50/60 Hz |
| Power Saving Features | Smart Power |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 15 W |
|---|
Accessories
| Included Accessories | Cleaning cloth (x 1), AC Power Cord, AC Switch Cover, Cable clip (x 3), DVI-I Cable (1.8 m) (x 1), HDMI Cable (3 m) (x 1), IR sensor cable (1.8 m) (x 1), Philips logo (x 1), Quick start guide (x 1), Remote control and AAA batteries, RS232 cable, RS232 daisy chain cable (x 1), Touch Pen (x 2), USB A to B cable (3 m) (x 1), USB cover and screws |
|---|---|
| Optional accessories | Interact dongles |
Miscellaneous
| On-Screen Display Languages | Arabic, Dutch, Danish, English, French, Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE, FCC Class A, RoHS, CB, EAC, EMF, ETL |
| Warranty | 5-year warranty |
Multimedia Applications
| USB Playback Video | H.263, H.264, H.265, MPEG1/2, MPEG4, VP8, VP9 |
|---|---|
| USB Playback Picture | BMP/JPEG/PNG |
| USB Playback Audio | AAC/HEAAC/MPEG |
Interactivity
| Multi-touch technology | 0-gap Infrared touch |
|---|---|
| Touch points | 20 simultaneous touch points |
| Plug and play | HID compliant |
| Protection glass | Anti-Glare, Blue light filter, Tempered safety glass 7 MOHS |
Internal Player
| CPU | MTK 9970A |
|---|---|
| Memory | 4 GB RAM |
| Storage | 32 GB eMMc |
| Wi-Fi | 2G/5G/6G 2T2R |
Dimensions
| Set Width | 1715.5 |
|---|---|
| Set Height | 1007.6 |
| Set Width (inch) | 67.54 |
| Set Height (inch) | 39.67 |
| Set Depth (inch) | 3.99(D_Max)/3.12(D_Wallmount) |
| Wall Mount | 600 x 400 mm, M8 |
| Bezel width | 17.8 mm(T/R/L)x 31.7 mm(B) |
| Set Depth | 101.5 mm(D_Max)/79.2 mm(D_Wallmount) |
| Smart Insert mount | 100 x 100 mm, 6xM4L6 |
| Weight | 55.85 |
Weight
| Product with packaging (kg) | 67.7 |
|---|---|
| Product with packaging (lb) | 149.25 |
| Product without stand (kg) | 55.85 |
| Product without stand (lb) | 123.13 |
