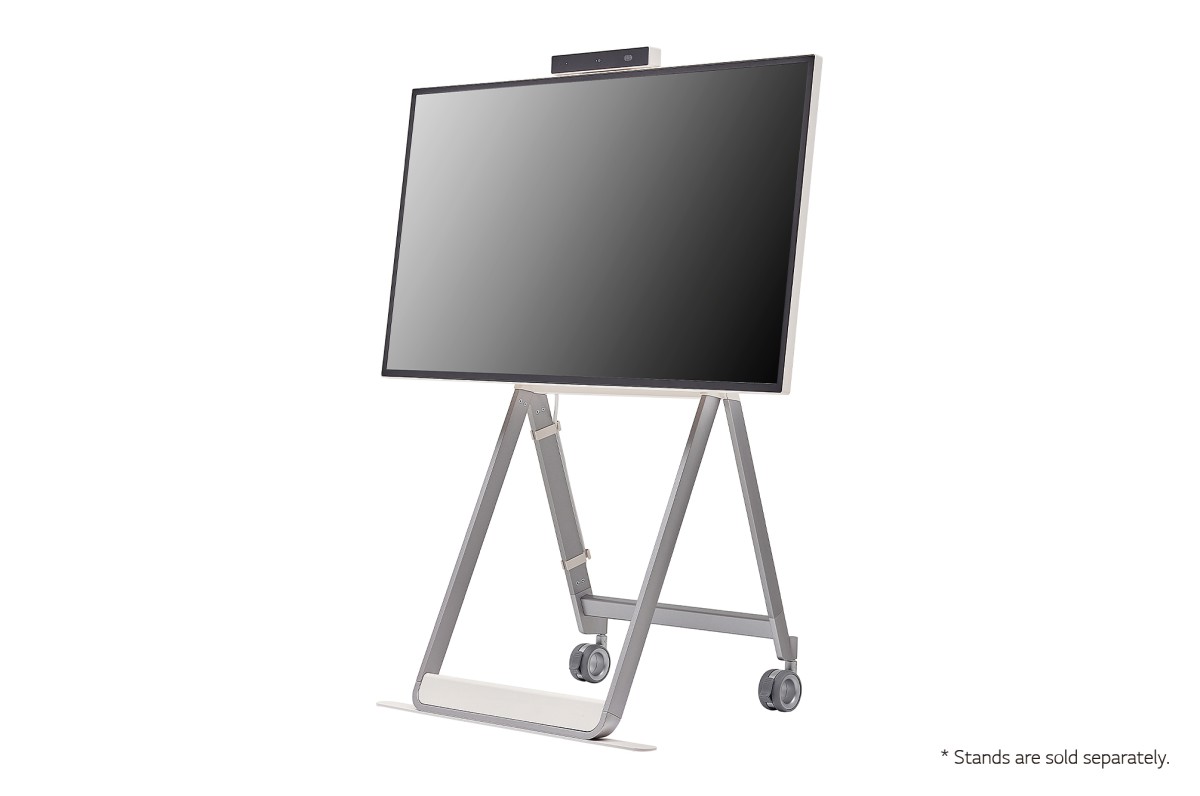

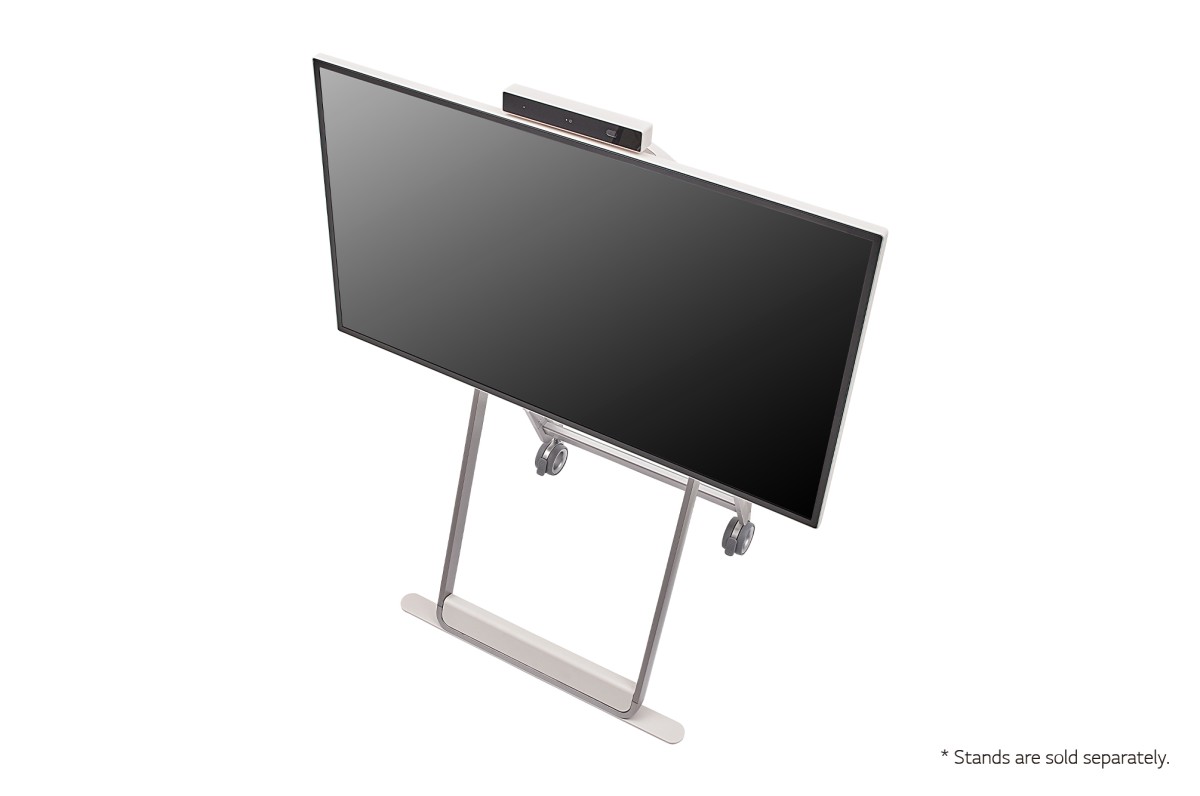

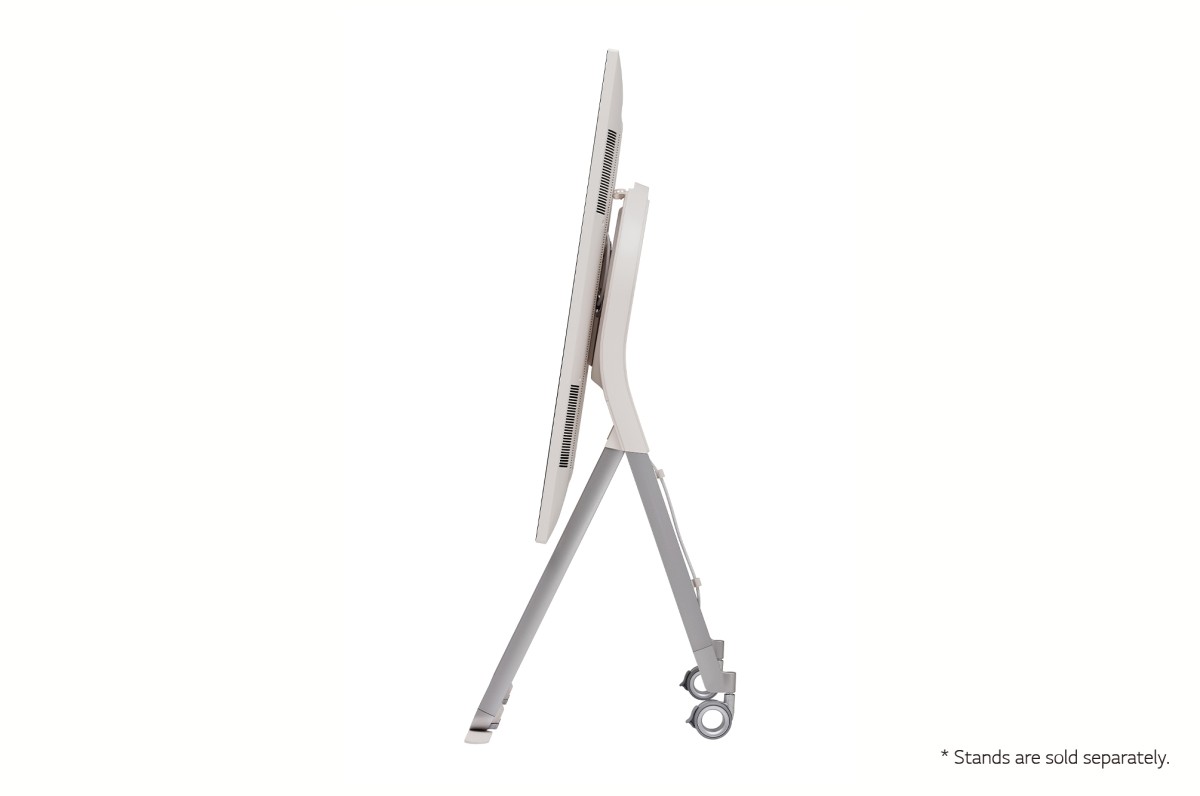

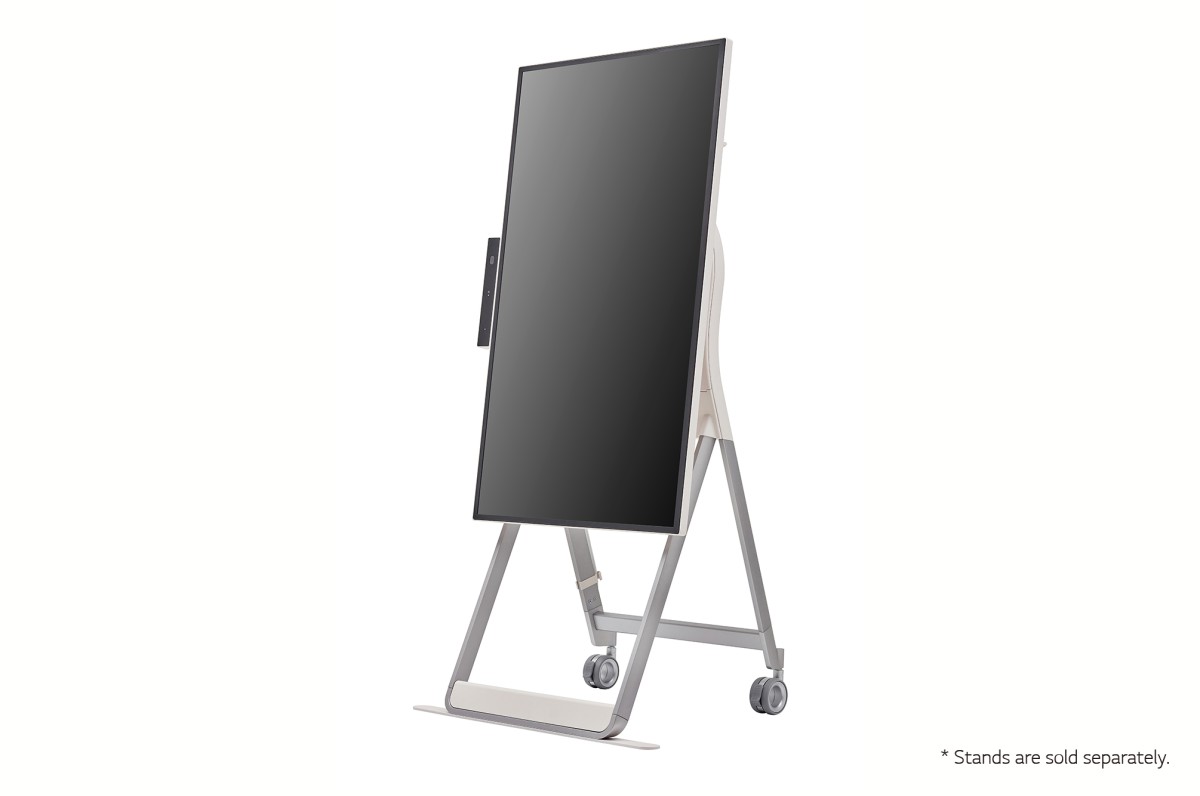

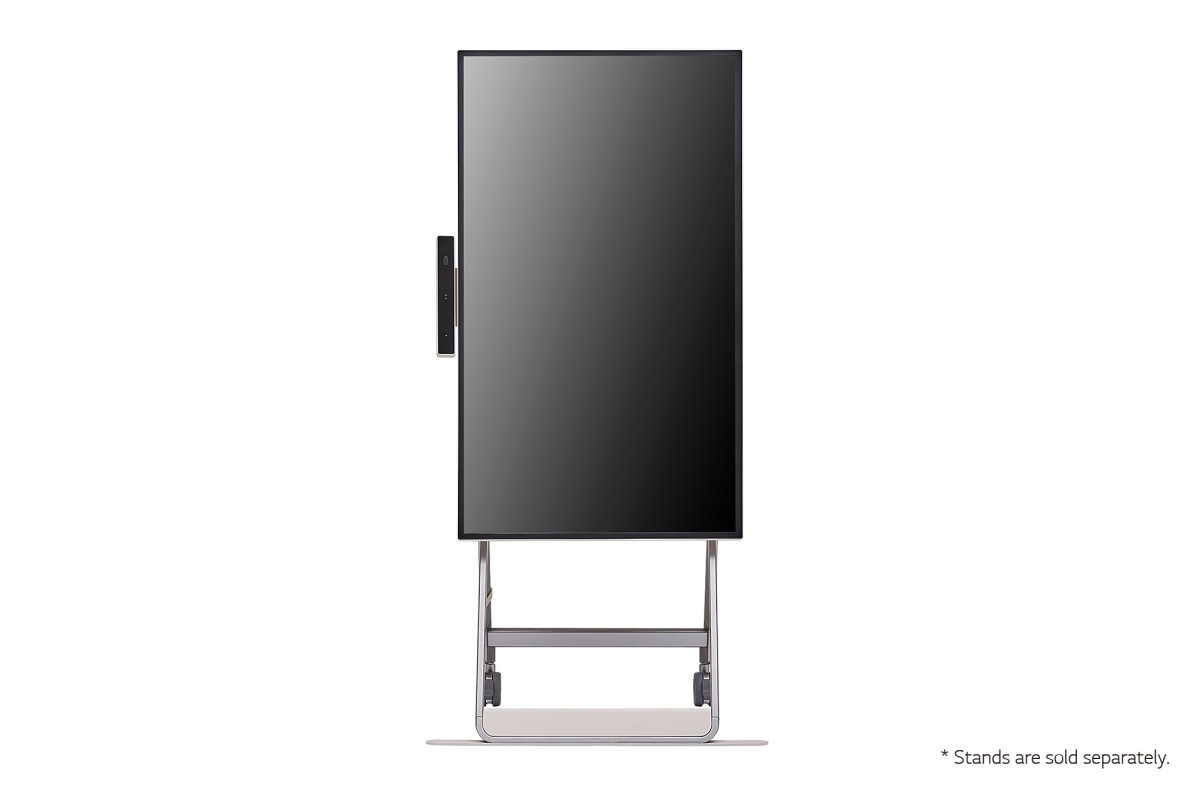

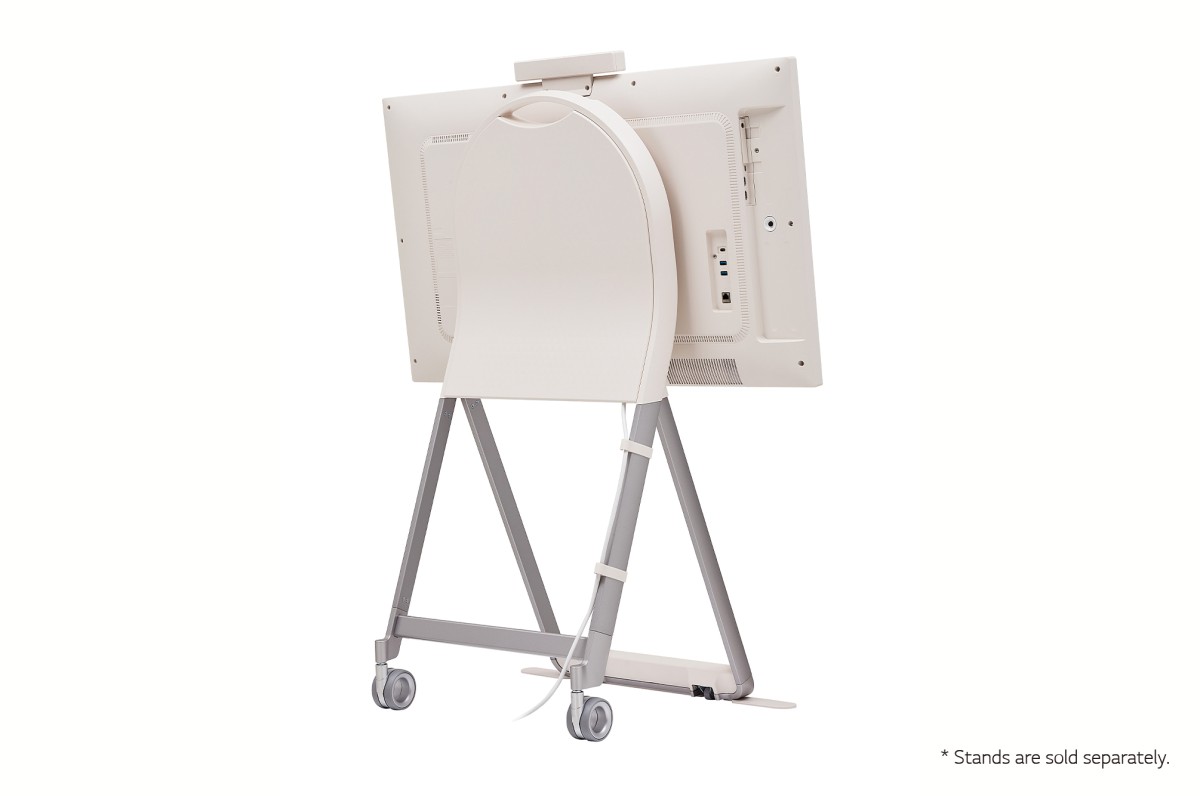

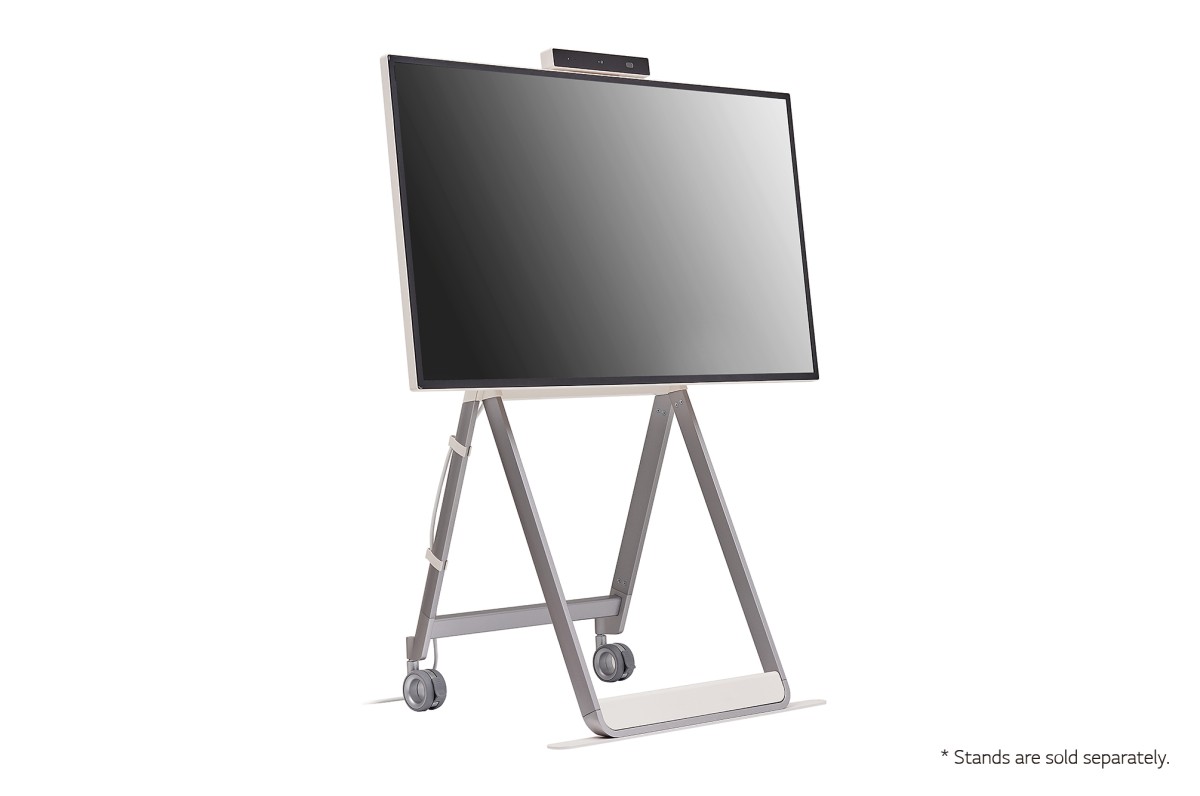

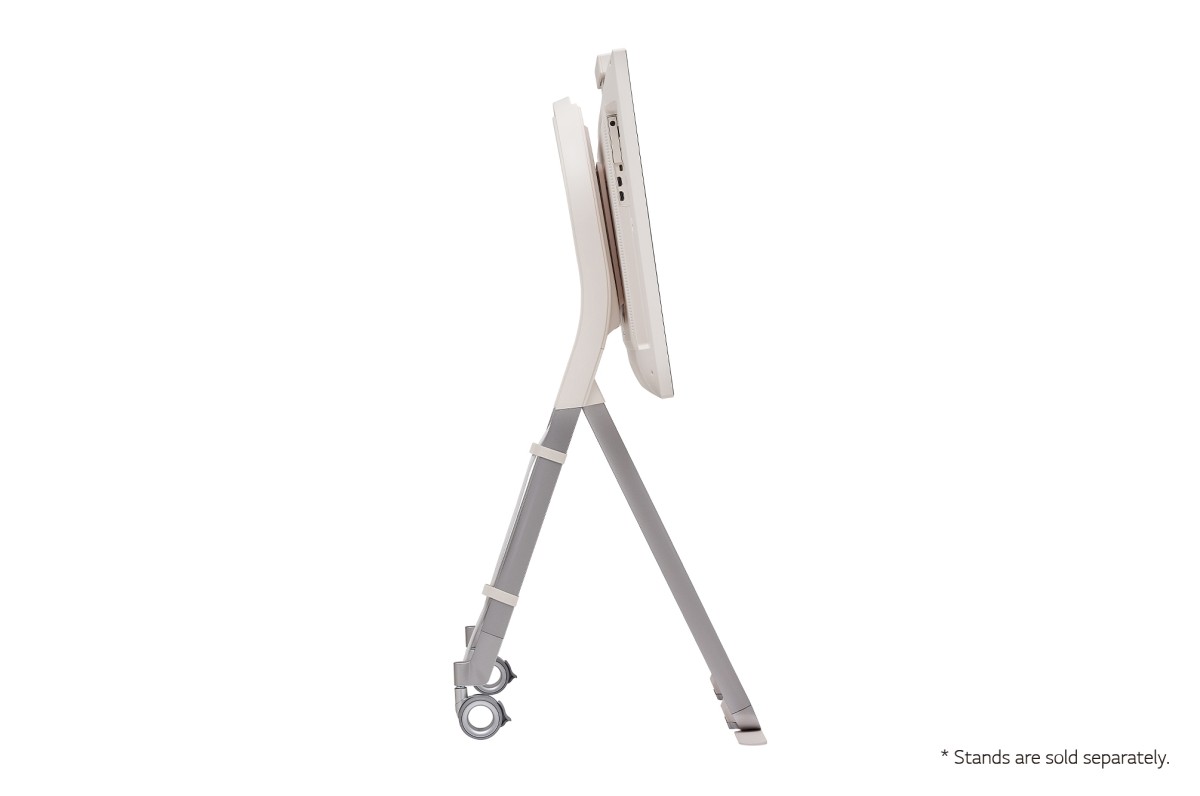

LG 43HT3WJ Digital Signage One:Quick Flex Series

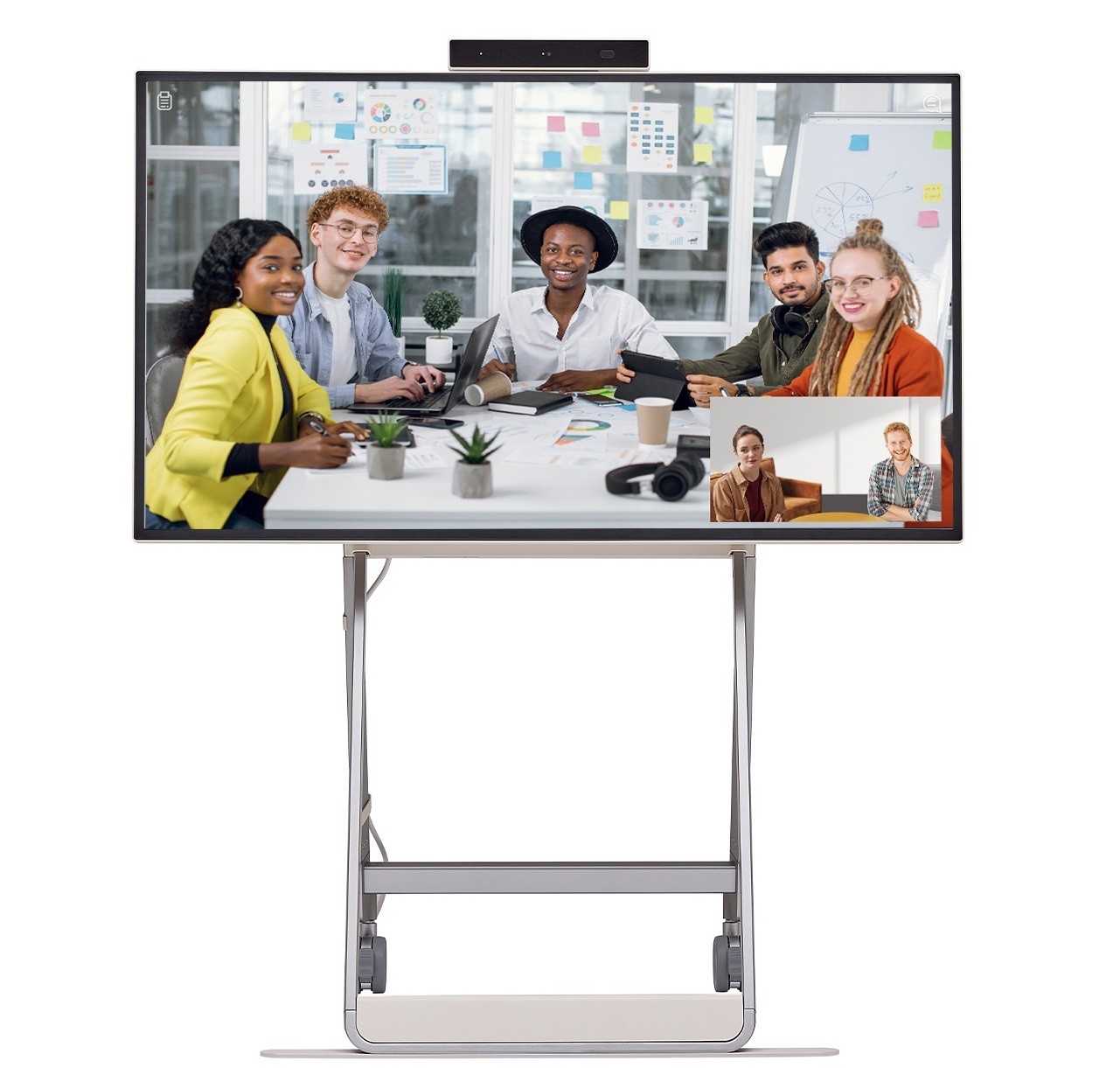

Product code:With LG One:Quick Flex's 43-inch all-in-one display complete with built-in camera, microphones and speakers there's no need to stress over online meetings and calls and no more inconvenience of connecting to and setting up video conferencing.
SEND AN ENQUIRYDescription
Panel
| Screen Size | 43" |
|---|---|
| Panel Technology | U-IPS |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 350 nit |
| Contrast Ratio | 1000:1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10-bit (D),1.07 Billion Colors |
| Response Time | 9ms |
| Portrait / Landscape | Yes / Yes |
| Hours of Operation | 24/7 |
| OS | Windows 10 |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | 13.9 / 13.9 / 13.9 / 16.5 mm |
| Weight (Head) | 12.7 kg |

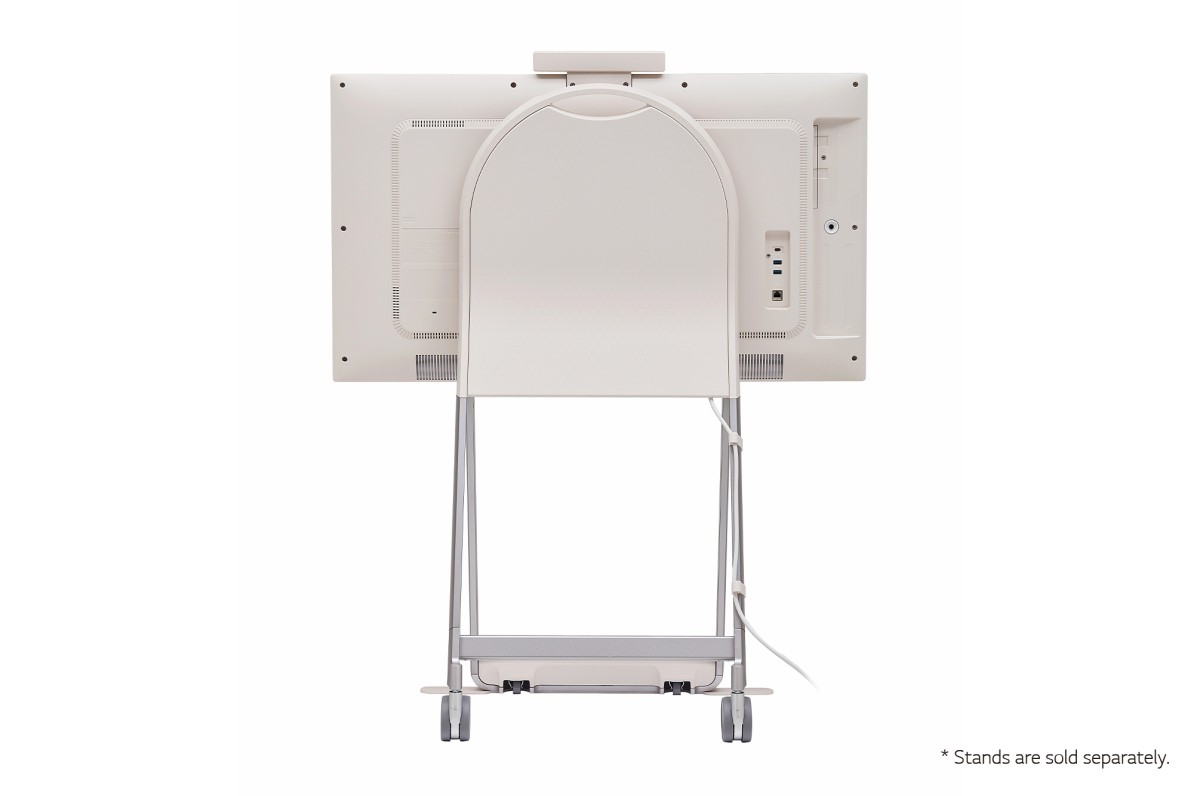

| Weight(Head+Floor Stand) | 29.3 kg |
| Monitor Dimensions (W × H × D) | 973.2 x 605.8 x 49.4 mm |

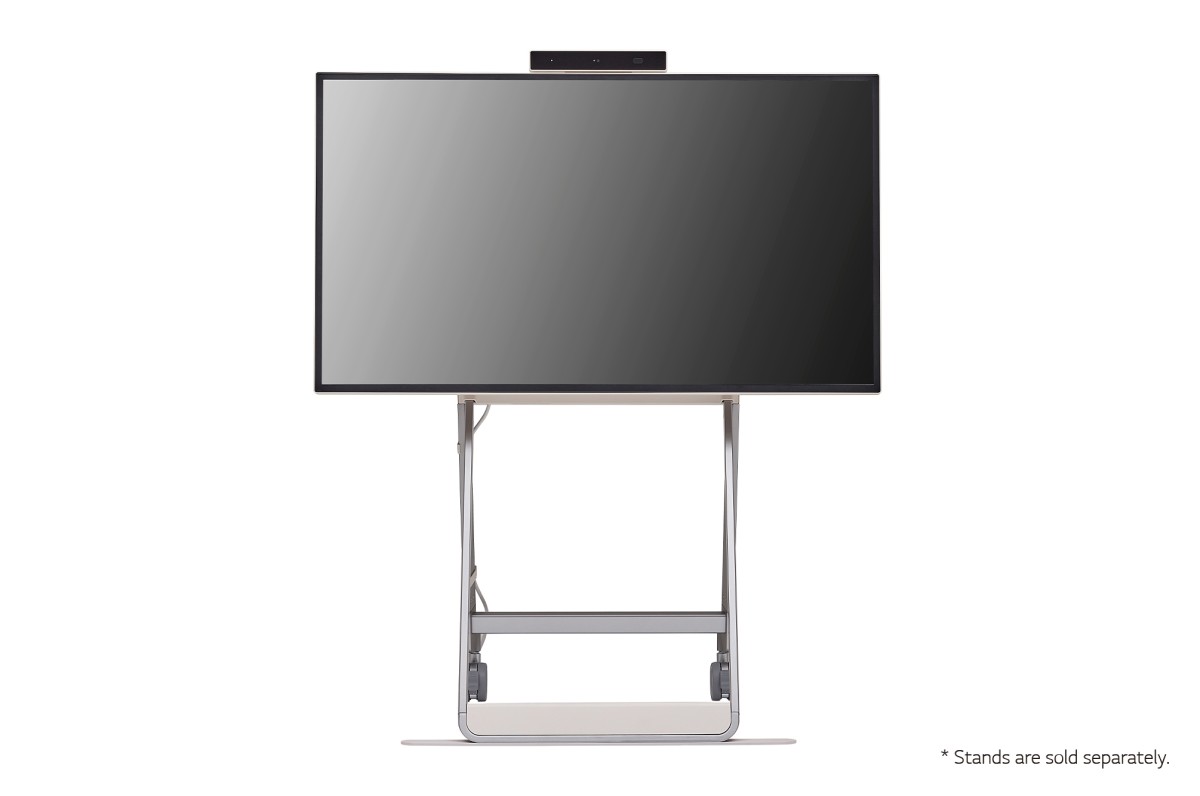

| Monitor Dimensions with Stand (W × H × D) | Floor Stand (Landscape) : 973.2 x 1,198.1 x 610.0 mm Floor Stand (Portrait) : 662.0 x 1,360.9 x 610.0 mm Desktop Stand : 973.2 x 641.2 x 242.3 mm |
| VESA™ Standard Mount Interface | 200 x 200 |
Key Feature (Hardware)
| CPU | AMD Ryzen R1505G |
|---|---|
| Graphics | Radeon Vega GPU |
| Internal Memory | 128 GB (eMMC), 4GB / 8GB (RAM) *8 GB RAM will be applied to model produced from August 2022. |
| Wi-Fi | 802.11ac 2 x 2 |
| Bluetooth | Bluetooth 5.0 |
| Sensor | Sensor Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor |
| Local Key Operation | Yes (Jog Key) |
Key Feature (Software)
| OS | Windows 10 IOT Enterprise (Basic) |
|---|---|
| Features | Launcher Bar, Home Dashboard, Screen Capture, Meeting (Voice) Record, File Sharing, Reader Mode (Bluelight), One:Quick Remote Meeting |
| Split View (Full / Half) | Yes |
| Built-in Apps | Preloaded (Chrome, Skype) / Download Link (Netflix, MS Whiteboard) |
Connectivity
| Input | HDMI(2), DP(USB Type C)(1), RJ45(LAN) (1), USB 3.1 Type A(2), USB Type C(1) |
|---|---|
| Output | DP Out(USB Type C, DP ALT MODE)(1) |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ. | 75 W |
|---|---|
| Max. | 190 W |
| BTU (British Thermal Unit) | 56 |
Certification
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "B" / CE |
| ErP | Yes |
Sound
| Speaker | Yes (10 W x 2) |
|---|
Accessory
| Basic | HDMI Cable, Remote Controller, Touch Pen, Pen Tip, Manual, Regulation Book, Warranty Card, IG |
|---|---|
| Optional | Floor Stand (ST-43HF), 1 Pole Desktop Stand (ST-43HT) |

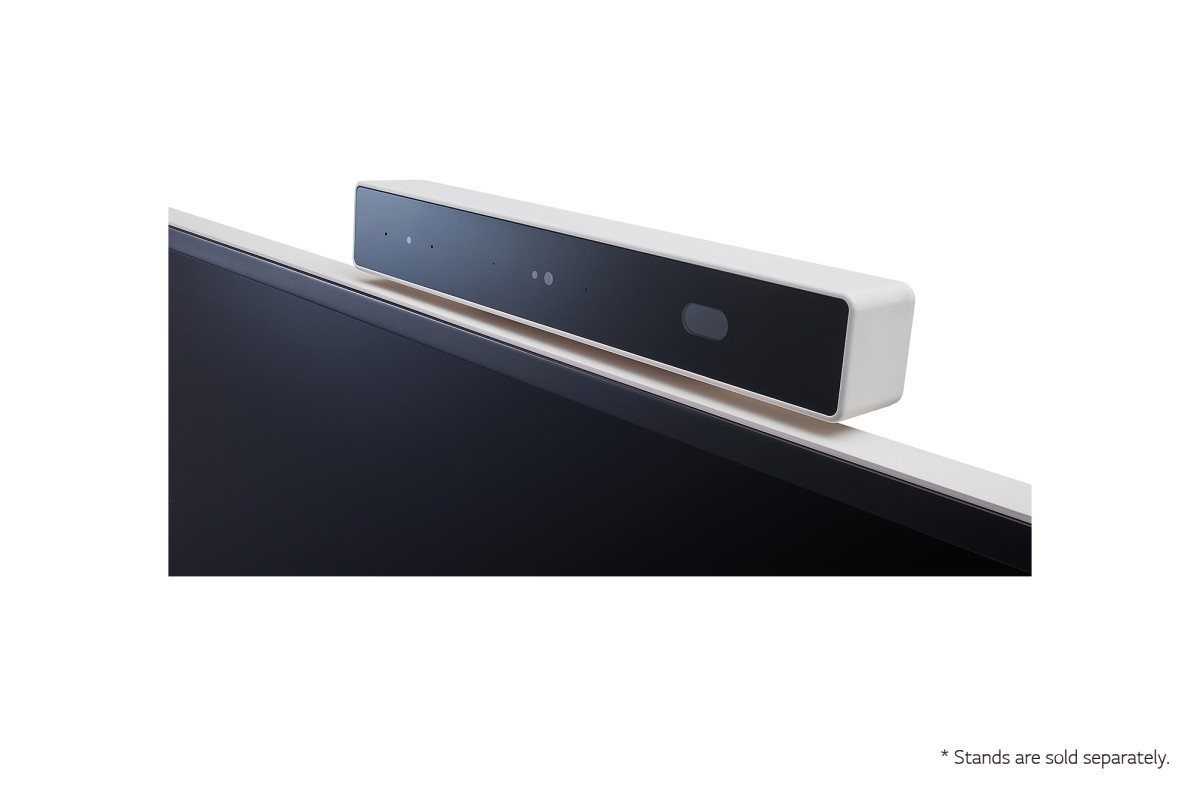

Camera
| Resolution | 1920 x 1080 (FHD) |
|---|---|
| Field of View (FoV) | 88° |
MIC
| Array | 2EA |
|---|---|
| Pickup Range | 3 m |
Touch
| Available Object Size for Touch | Ø8 mm |
|---|---|
| Reponse Time (PC Win10, based on Whiteboard) | 35 mm ↓ |
| Accuracy | 3 mm ↓ |
| Interface | USB1.1 |
| Operating System Support | Windows 10 or higher |
| Multi Touch Point | Max. 10 Points |
