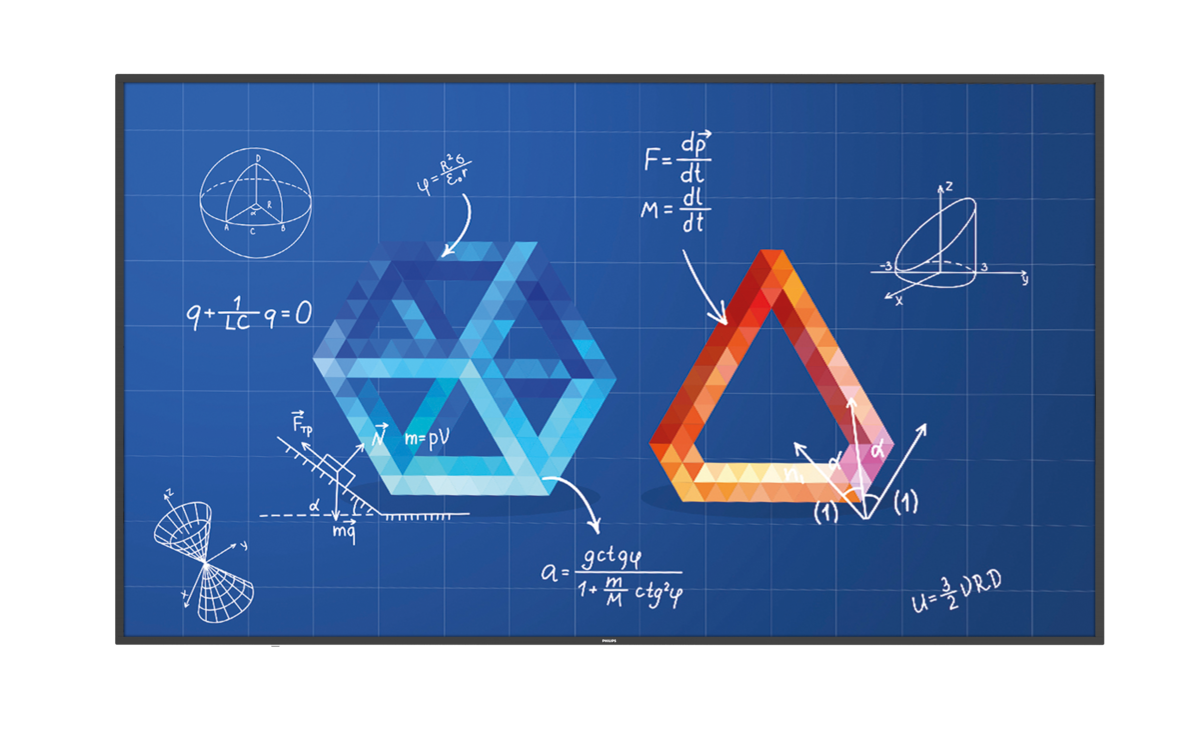

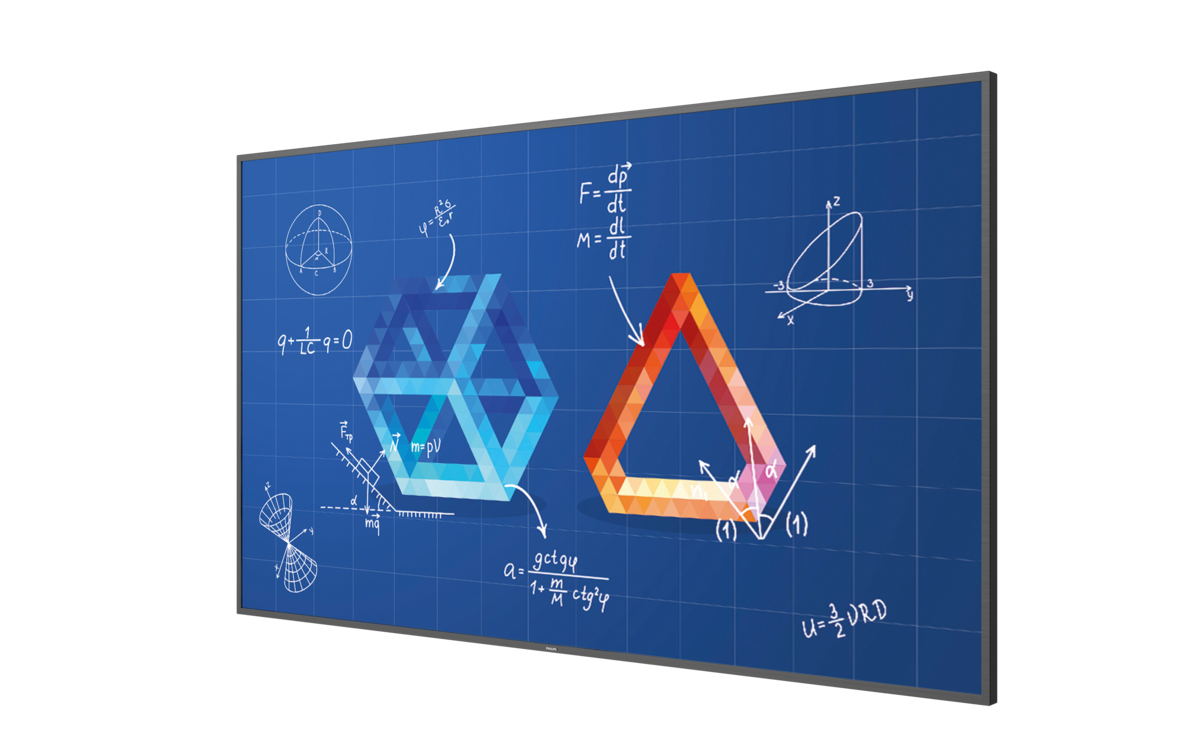

Philips T-Line 86BDL3552T/00 Touch Display
Product code:Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring anti-glare toughened glass, these Android-powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (inch) | 85.6 |
|---|---|
| Diagonal screen size (metric) | 217.4 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 420 |
| Contrast ratio (typical) | 1200:1 |
| Dynamic contrast ratio | 500,000:1 |
| Aspect ratio | 16:9 |
| Response time (typical) | 8 |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Display colours | 1.07 billion |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, 3D MA deinterlacing, Dynamic contrast enhancement, Progressive scan |
| Operating system | Android 9 |
| Panel technology | IPS |
| Surface treatment | Anti-Glare coating |
Additional information
Connectivity
| Video input | Display Port1.2 (x 1), DVI-I (x 1), HDMI 2.0 (x 4), USB 2.0 (x 2), USB 3.0 (x 2), USB-C |
|---|---|
| Audio input | 3.5 mm Jack (x 1) |
| Audio output | 3.5 mm Jack (x 2) |
| Other connections | OPS, micro SD |
| External control | RJ45, RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack |
| Video output | DVI - D (x 1), DisplayPort 1.2 (x 1), HDMI 2.0 (x 2), USB 2.0 (x 2) |
Supported Display Resolution
| Computer formats | 1600 x 1200, 60 Hz / 1360 x 768, 60 Hz / 1024 x 768, 60, 70 Hz / 1152 x 864, 60, 70, 75 Hz / 1152 x 900, 66 Hz / 1280 x 720, 60, 70 Hz / 1280 x 768, 60 Hz, 75 Hz / 1280 x 800, 60, 75 Hz / 1280 x 960, 60 Hz / 1280 x 1024, 60, 67, 75 Hz / 1366 x 768, 60 Hz / 1400 x 1050, 60, 75 Hz / 1440 x 1050, 60 Hz / 1440 x 900, 60, 75 Hz / 1600 x 900, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz / 1920 x 1200, 60 Hz / 3840 x 2160, 24, 25, 30, 60 Hz / 640 x 350, 70 Hz / 640 x 480, 60, 67, 72, 75 Hz / 800 x 600, 56, 60, 72, 75 Hz / 832 x 624, 75 Hz / 848 x 480, 60 Hz / 960 x 720, 75 Hz |
|---|---|
| Video formats | 1080p, 50, 60 Hz / 720p, 50, 60 Hz / 1080i, 50, 60 Hz / 480p, 60 Hz / 4K x 2K / 576p, 50 Hz / 720p, 60 Hz |
Dimensions
| Set Width | 1961.00 |
|---|---|
| Set Height | 1132.30 |

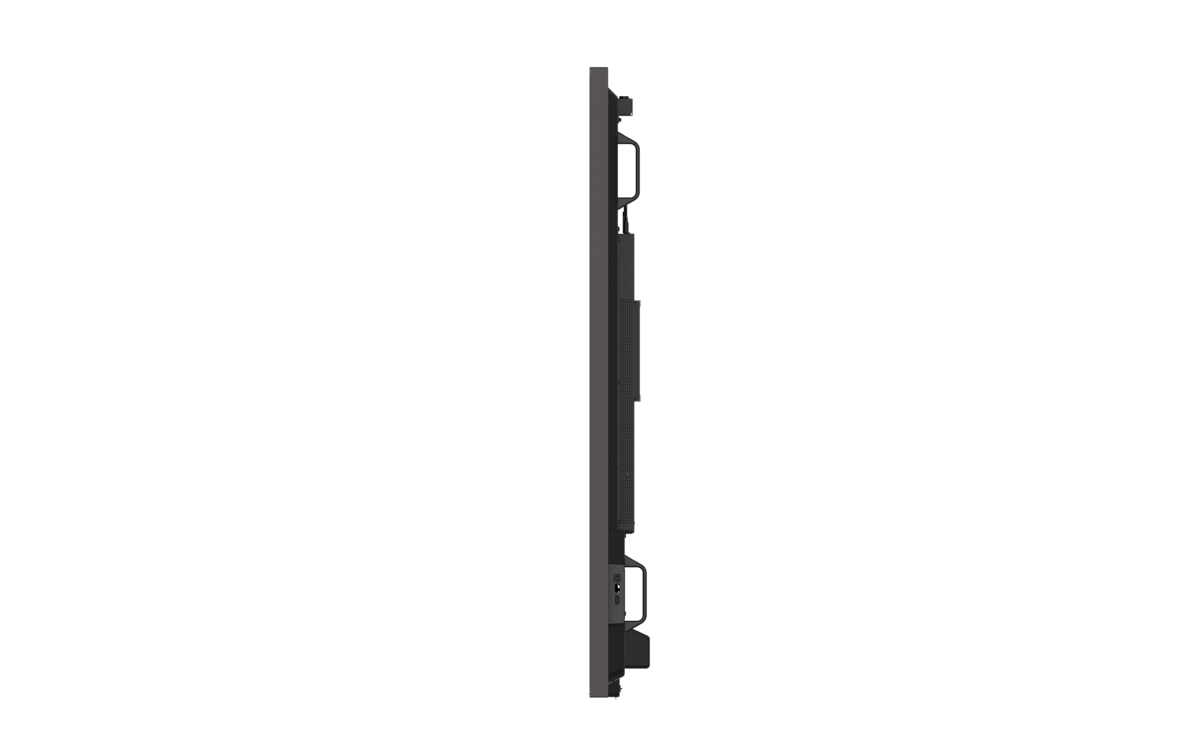

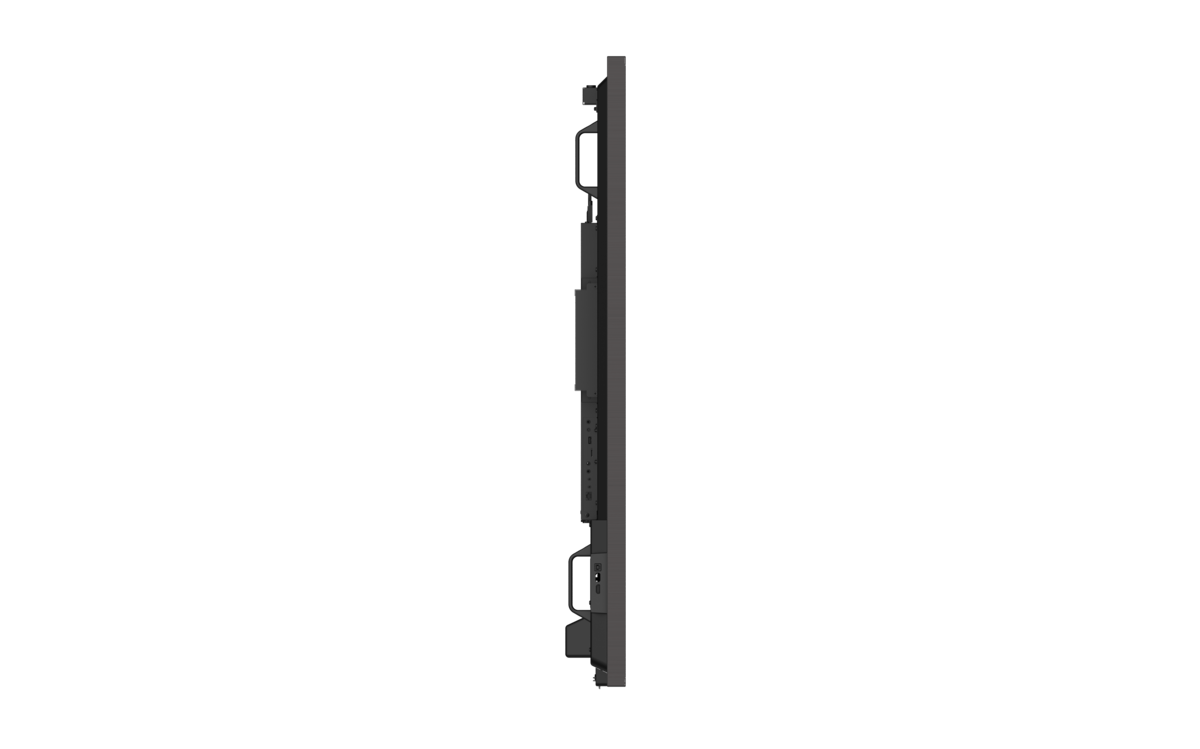

| Set Depth | 80.5 mm (D@wall mount) / 108.4 mm (D@speaker cover) |
| Set Width (inch) | 77.20 |
| Set Height (inch) | 44.58 |
| Set Depth (inch) | 3.17" (D@wall mount) / 4.27" (D@speaker cover) |
| Bezel width | 16.30 mm(even) |
| Product weight (lb) | 163.8 |
| Product weight | 74.3 |

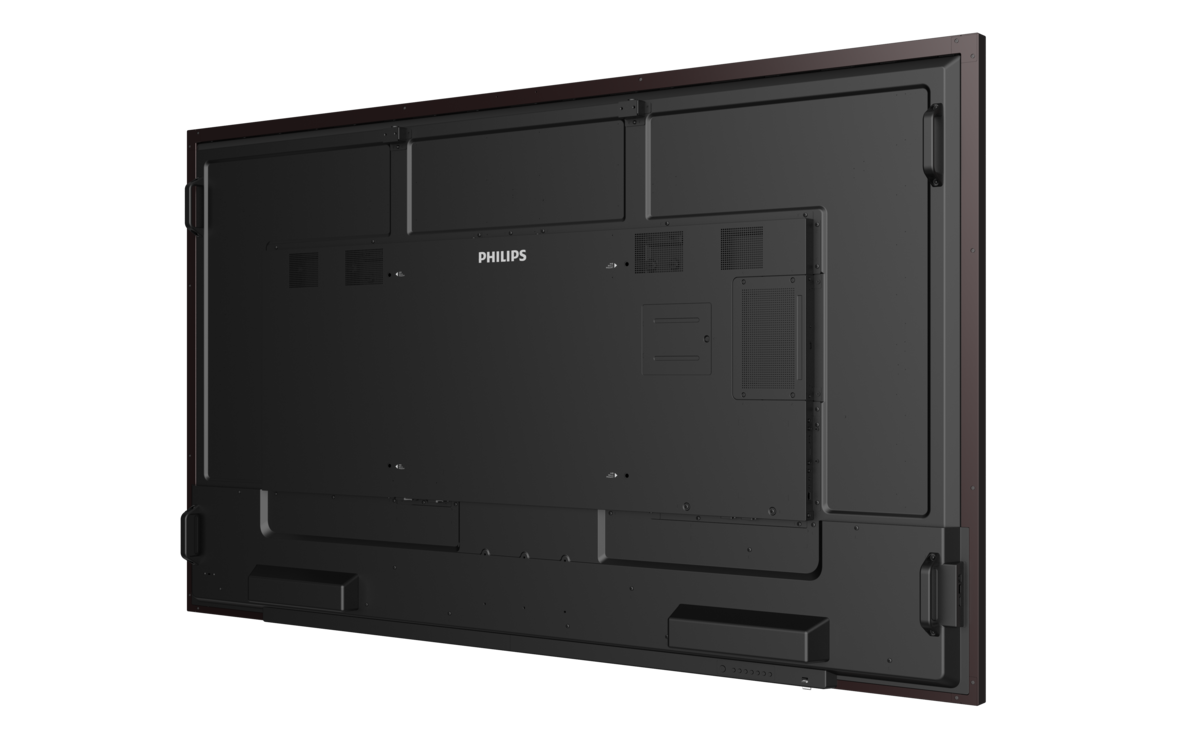

| Wall Mount | 600(H)x400(V) mm, M8 |
| Smart Insert mount | 100 mm x 100 mm, 6 x M4L6 |
Convenience
| Placement | Landscape (18/7), Portrait (12/7) |
|---|---|
| Keyboard control | Hidden, Lockable |
| Signal loop through | RS232, IR Loop through, DisplayPort |
| Network controllable | RJ45/RS232 |
| Energy-saving functions | Smart Power |
| Screen-saving functions | Low Bright |
| Ease of installation | Smart Insert |
| Other convenience | Carrying handles |
| Picture performance | Advanced colour control |
| Remote control signal | Lockable |
Power
| Standby power consumption | <0.5 W |
|---|---|
| Mains power | 100 - 240 V~, 50 - 60 Hz, 7.5 A |
| Consumption (Typical) | 390 |
| Consumption (Max) | 650 W |
| Power Saving Features | Smart Power |
| Energy Label Class | G |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Relative humidity | 20–80% (Operational), 5–95% (Storage) |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
Sound
| Built-in speakers | 2 x 20 W RMS |
|---|
Accessories
| Included accessories | Remote Control, Batteries for remote control, Quick start guide, RS232 cable, AC Power Cord, HDMI cable, IR sensor cable (1.8 M) |
|---|---|
| Included Accessories | RS232 daisy-chain cable, Cleaning cloth (x 1), DVI-D cable (1.8 m), M2 Screw (x 2), M3 screw (x 2), Philips logo (x 1), Touch Pen (x 2), Touch USB (x 1), USB Cover (x 1) |
| Optional accessories | Cast to dongle |
Multimedia Applications
| USB Playback Audio | AAC/M4A/WMA/MP3 |
|---|---|
| USB Playback Video | MKV/MP4/MPEG/MPG/TS/VOB/ASF/AVI/DAT/FLV/WEBM/WMV |
| USB Playback Picture | BMP/JPEG/PNG/JPG |
Miscellaneous
| On-Screen Display Languages | English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish |
|---|---|
| Regulatory approvals | CE, RoHS, BSMI, CB, ETL, FCC Class A, PSB, EMF, EAC |
| Warranty | 3 year warranty |
Interactivity
| Multi-touch technology | Advanced infrared touch |
|---|---|
| Plug and play | HID compliant |
| Protection glass | Anti-Glare, Tempered safety glass |
| Touch points | 20 simultaneous touch points |
Internal Player
| CPU | MTK5680 |
|---|---|
| GPU | DDR4 4 GB |
| Memory | 4 GB RAM |
| Storage | 32 GB eMMc |
| Wi-Fi | AP(WC0SR2511-88112BU), STA(WCT5GM2511MT7668AU) |
